ADIGE LASERTUBE LT722D

ADIGE LASERTUBE LT722D

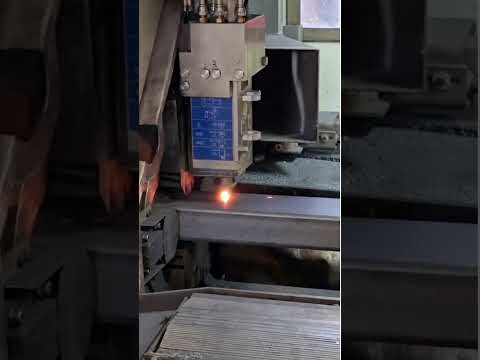

This ADIGE LASERTUBE LT722D was manufactured in 2012. It's designed for laser processing of tubes, handling materials like mild steel and stainless steel. It supports various tube shapes, including round, square, and rectangular, with dimensions up to 140 mm. Features include a PRECITEC AK-HP cutting head, automatic tube bundle loader, and a robust unloading system. Ideal for high-quality laser cutting operations. Contact us for more information about this machine.

• Semi-sealed, diffusion-cooled co2 laser source rofin dc 025 compact. Rated power: 2500 w.
• Main module of the automatic unloading system with 1-cnc-axis controlled support for the tube to be machined
• Program-controlled unloading
• Extension module of the automatic unloading system for part lengths up to 4500 mm
• Sorting of good parts to front (desk side) and rear (loader side)
• Sorting of cut pieces and offcuts into a cassette
• Suitable for processing open profiles (flat, l, c, and u-profiles)
• Specific mechanical devices and process modifications for open profiles
• Suitable for processing tubes made of mild steel or stainless steel
• Round tube dimensions: Ø 12–140 mm
• Square tube dimensions: 12 x 12 mm to 120 x 120 mm
• Rectangular/flat-oval tube dimensions: side 10 mm up to max 140 mm
• Maximum side difference for rectangular/flat-oval tubes: 110 mm
• Workpiece envelope: inscribed in a Ø 170 mm circle
• Maximum tube weight: 15 kg/m; 100 kg total maximum
• Equipment and Unloading Device Features
• Equipment for a 6.5 m bundle loader for tubes/pipes with sensitive surfaces: Rubber cladding of the chains for material feed. Plastic cladding of the tube/pipe loading and holding parts up to separation.
• Main module of the automatic Unloading Device, with: 1-CNC-axis controlled support for the tube/pipe to be processed. Program-controlled unloading.
• Extension module of the automatic Unloading Device for partial lengths up to 4,500 mm, with: Sorting of the good parts: To the front (console side), from 250 mm to 4,500 mm. To the rear (loader side) up to 4,000 mm. Sorting of crop ends and remnants in lengths under 250 mm into a e/Pipe Specifications
• Round Tubes: Diameter $\text{12 mm}$ up to $\text{140 mm}$.
• Square Tubes: $\text{12 x 12 mm}$ up to $\text{120 x 120 mm}$.
• Rectangular/Flat Oval Tubes: $\text{10 mm}$ side up to max. $\text{140 mm}$ side. Maximum side difference: $\text{110 mm}$. Must be inscribable in a $\text{170 mm}$ diameter circle.
• Maximum Tube/Pipe Weight: $\text{15 kg/m}$ (100 kg maximal total).
Fgedpex D Nniefx Aadea

Additional equipment

• PRECITEC AK-HP universal cutting head holder for non-contact distance control
• Capacitive distance sensor with reinforced ceramic part
• Pressure resistance up to 25 bar
• Mixed cooling (water and dry air) for the lens holder/upper lens area
• Dry-air cooling of the ceramic part and nozzle
• Automatic tube bundle loader for initial lengths between 3200 and 6500 mm
• Loading with an overhead crane possible
• Special lift loader equipment for square, rectangular, and flat-oval tubes
• Tube separation with length measuring station
• Equipment for a 6500 mm bundle loader for pipes with sensitive surfaces
• Artube nesting software included
