Lóðrétt Machining Center

Brother M200X3

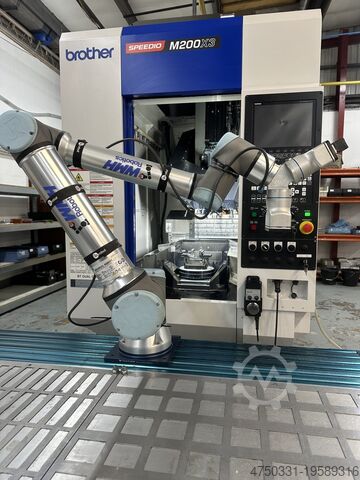

Brother M200X3 5 Axis Mill/turn CNC Milling Machine integrated with Universal Robots UR10 collaborative Robot.

Automation ready for a range of different components, extras include:

Schunk pneumatic vice
16000 RPM spindle

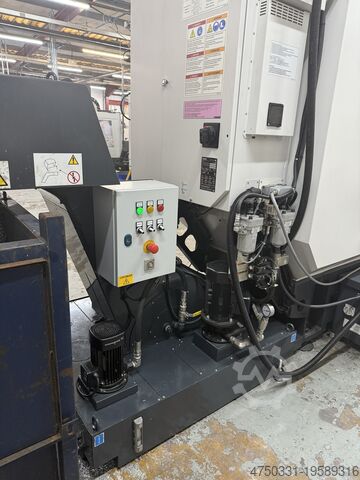

Grundfos high pressure coolant pumps
Through Spindle coolant
Automatic Door
Blum spindle and tool probes
Fully integrated to collaborative robot
On robot dual gripper

Reduce electric cost by 80% compered with Mazak 3 axis mill and cut cycle times by half!
Chodpfx Abewz Ihfetec

3486 hours - Aluminium only

Machine only £100,000
Robot only £20,000
Machine and robot - £120,000

Price exc VAT
Machinery removal and delivery to be paid by purchaser.

Table size 140mm dia. Travels X/Y/Z 200/440/305mm A travel 120 ～ －30 deg. C travel 360 deg. Distance between table top and spindle nose end 150 ～ 455 (5.9 ～ 17.9). Max. loading capacity Table side 40 (88.2) / Tale side 11 (24.3). Max. table load inertia Table side 0.29 (991) / Tale side 0.04 (137). Spindle speed 16000RPM. Speed during tapping 6000RPM. Tapered hole 7/24 tapered No.30. Coolant Through Spindle(CTS). High pressure coolant. Auto door. Probing.Turning Spindle – Max. spindle speed 2000RPM. Rapid traverse rate(XYZ-area) 50 × 50 × 50. Cutting feed rate X, Y, Z axis ： 1 ～ 30,000. Indexing feedrate(A and C) A axis : 60 C axis : 200. Tool shank type MAS-BT30. Pull stad type ＊4 MAS-P30T-2. Tool storage capacity 22. Max. tool length 200mm. Max. tool diameter 80mm. Max. tool weight 3Kg. Tool selection method Random shortcut method.
Dimension L x W x H 1280 x 3862 x 2603mm.
Weight 3050Kg
