Edge banding vél

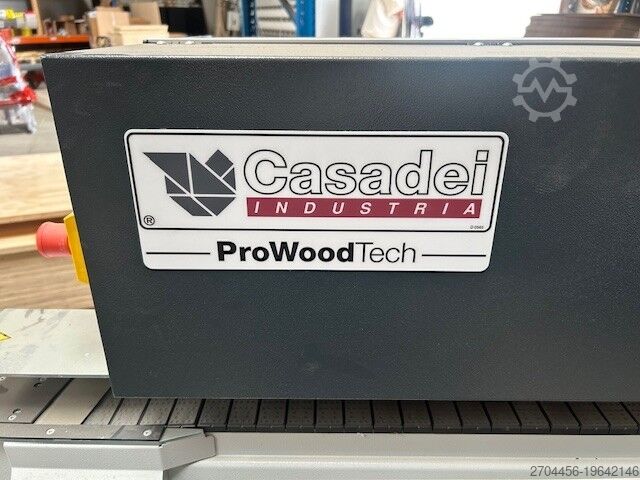

Casadei KAM 550 PRO

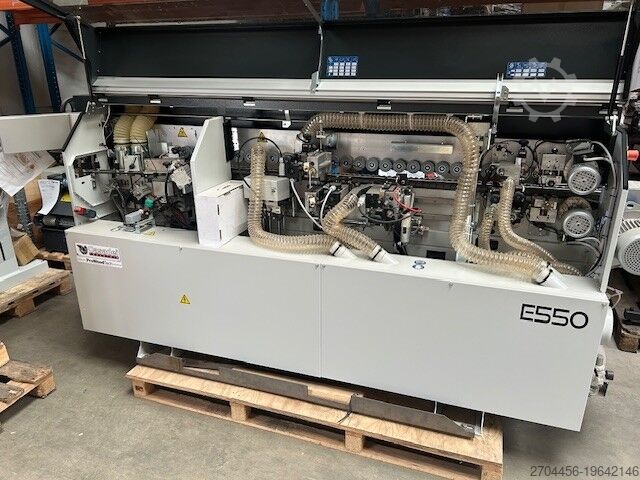

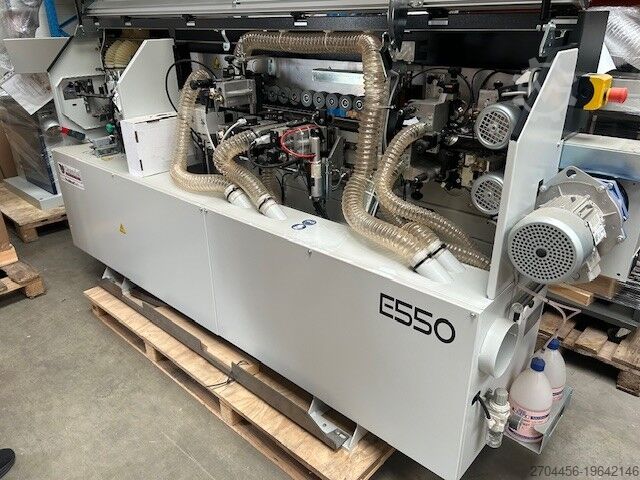

Automatic edge banding machine with lower glue pot for hot melt adhesive (EVA), feed chain conveyor, jointing and trimming unit, and corner rounding unit

Feed speed: 9 m/min
Panel thickness: 50 mm
Edge thickness (rolls): 3 mm
Edge thickness (solid wood strips): 5 mm
Chain feed
Pre-milling and jointing unit
Corner rounding unit
Unit adjustment via edge pieces
Simple and intuitive operation

Machine features:
- Display: 7” color touchscreen
- Capability to work with storable programs
- Graphic interface shows the processing outcome directly on the panel
- Single-click selection of desired processing mode

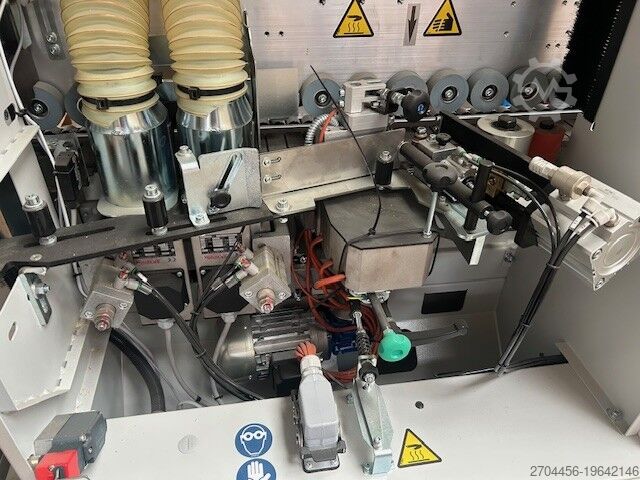

Interchangeable glue pot:
- 6 heating elements ensure consistent, even glue temperature
- Motorized glue application roller with internal electric heating element
- Teflon-coated glue pot for quick and thorough cleaning
- Quick-change device allows fast and simple replacement of the glue pot
- Glue pot capacity: 1 kg
- Depending on glue type, two different temperatures with automatic standby function can be set

Tool kit R = 2 mm
- Fast changeover between processing modes: thin edge, radius, solid wood strips

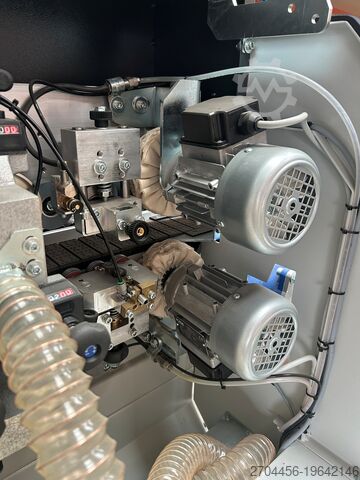

- 2 high-frequency motors, 200 Hz, 12,000 rpm
- Flush trimming unit with multi-profile tool for thin edge and radius (solid wood)
- Nesting
- Scraper unit
Chjdjw Dq Hcopfx Abtsc
- Surface scraper

Buffing unit:
- The machine is equipped with a buffing unit

Cleaning spray aggregate:
- Electronically controlled spray function
- 2 spray nozzles (top and bottom) and fluid reservoir

LED interior lighting:
- LED interior lighting allows safe adjustment of units even in low ambient light
