Fræsivél - alhliða

DECKEL MAHO DMU 50 -6984

x-travel 500 mm
y-travel 450 mm
z-travel 400 mm

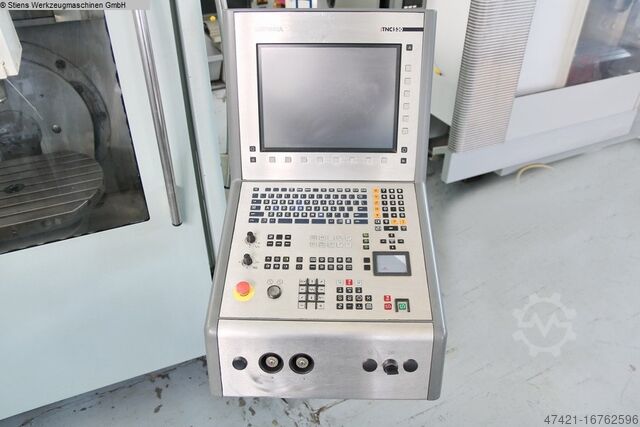

control iTNC 530 Heidenhain
turning speed range - main spindle 20 - 10.000 min/-1
power capacity - main spindel 9 / 13 kW
max. Torque 82 Nm
tool taper MAS BT 40
table surface area 630 x 500 mm
Dcsdjt Uv Dfspfx Ah Eeb
max. table load 200 kg
Swivel range -5 / +110 °
rotation range 360° °
T-slots 7x 14 x 63 mm

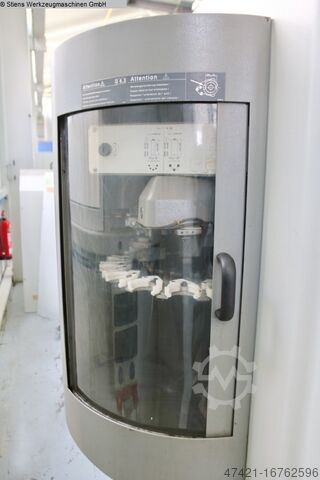

number of toolpositions 16 pos.
max. tool weight 6 kg
max. tool diameter 80 mm
max. tool-dia with free toolbox 130 mm
max. workpiece length 300 mm
change-time tool to tool 1,6 sec
change-time chip to chip 8,0 sec
rapid traverse 24 m/min
Feed force 4,8 kN
feed speeds 1 - 24.000 mm/min
total power requirement 17 kVA
weight of the machine ca. 5,0 t
dimensions of the machine ca. 4,5 x 3,5 x 2,3 m
5 Axis CNC - Milling Machine Universal
DECKEL MAHO - DMU 50

- 5 Axis (3+2)
- swivel-rotary-table : controlled B&C-Axis / only positioning
- Operating-Hours.: Power-On: ca. 37.700h / Spindle-Runtime: ca. 10.800h
