DMG MORI Sprint 65 línuleg

DMG MORI Sprint 65 linear

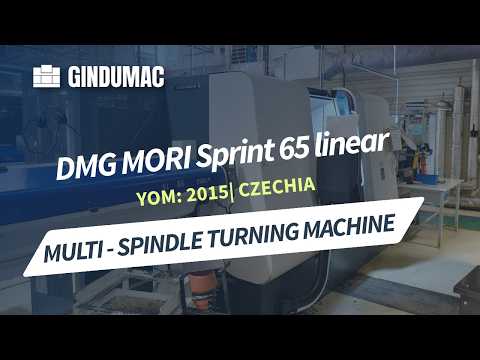

This 8-axis DMG MORI Sprint 65 linear was manufactured in 2015. It features a maximum workpiece diameter of 175 mm and a maximum bar diameter of 65 mm. The machine is equipped with two turrets, each with 12 driven tool positions, and offers a maximum spindle speed of 5000 rpm. If you are looking to get high-quality turning capabilities, consider the DMG MORI Sprint 65 linear multi-spindle turning machine we have for sale. Contact us for further details.

Control system: CNC 310 isTotal hours: 61295 hOperating hours: 42222 hMain spindle power 20/25 kWCounter spindle power 17 kWMax. main spindle speed: 5000 rpmMax. counter spindle speed: 5000 rpmMax. main spindle bar diameter: 65 mmMax. counter spindle bar diameter: 45 mmCNC CONTROLLED AXESStroke X1 165 mmRapid speed X1 30 m/minAcceleration X1 5 m/s2Stroke Z1 678 mmRapid speed Z1 30 m/minAcceleration Z1 5 m/s2Stroke Y1 80 (+50/-30) mmRapid speed Y1 30 m/minAcceleration Y1 5 m/s2Stroke X2 165 mmRapid speed X2 30 m/minAcceleration X2 5 m/s2Stroke Z2 640 mmRapid speed Z2 30 m/minAcceleration Z2 5 m/s2Stroke W2 690 mmRapid speed W2 30 m/minAcceleration W2 5 m/s2Number of turrets 2Number of rotating tools each station 12 all driven positionsTool system VDI 30Max driven tool speed 4.000 rpmApprox. coolant tank capacity 650 lCoolant pump acity (per each turret) 20 l/minPump pressure 7 barPower supply 91 kVALxWxH of the machine 4.500x1.990x2.300 mmApprox. machine weight 9.500 kgIEMCA MASTER 865 MP 43 L (4m) bar feederBase machine configuration:- Drive for slide 1 and 2 (all 12 pos.)- C-axis for main and counter spindle- Y-axis for slide 1- Swarf conveyor belt type- Counterspindle collet cleaning with coolant- Workpiece unloading including belt- Mechanical preparation for oil mist filter- Electrical and software interface for bar loader- Angular synchronism between main and counter spindle- Automatic machine shut down- 2 additional on/off outputs (4 M-functions)- Rigid tapping- Piece and time counter- Software for polygonal turning for slide 1 and 2- Constant cutting speed- Helical interpolation for slide 1- Spindle speed control- Quadruple warning light- Cooling device for electrical cabinetAdded options:I-V50011 Collet chuck Type "MPF 65/140" without axial feed for main spindle max. diameter: mping elements and other equipment:I-V50025 Manual collet changer type "SACO MPT65/140 and MPF65/140"I-V50092 Differential pressure for counterspindle, possibility of setting two different clamping pressures.I-V50083 1 set of soft jaws for chuck type "SMW 175-BBD"I-V50080 Chuck type "SMW 175-BBD" For counter spindle, including adapter for adapting the spindleI-V60050 Tool holder for drilling tools with internal cooling and cylindrical shank Ø 32mm,with clamping shank according to DIN 69880 (VDI 30) - 4pcsI-V60010 Radial tool holder for external machining type C1 with clamping shank according to DIN 69880 (VDI 30) - 5pcsControl system options:I-V12060 Tool wear monitoring system Monitor for CNC FANUCI-V12070 Sister tool selection system for Tool Monitor for CNC FANUCHydraulic and filtration equipment:I-V40045 External flushing of jaws/collets with coolant on main spindle and counter spindleSpecial options SK001 Special clamping device with mandrel for counter spindle product HAINBUCH AXFIX 811 including 2 colletsVarious new spare parts are included.
Hfsdpey Au Uuofx Afkjf

Technical Specification
Counter Spindle Yes
Driven Tools Yes
