3-spindla afritunarfræsivél

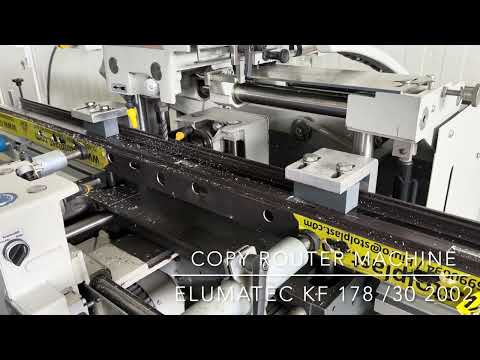

Elumatec KF 178 / 30

ELUMATEC KF 178 – 3-Spindle Copying Router
Technical Data
Upper Routing Unit
Routing area with stops or copying templates: 340 × 100 mm
Stroke: 110 mm
Lower Routing Unit
Routing area with stops or copying templates: 240 × 85 mm
Front stroke: 95 mm
Rear stroke: 45 mm
General Data
Continuously adjustable speed from 3,000 to 12,000 rpm.
Fedpfx Aozcz Dnscrjph
Also suitable for thin-walled steel and stainless steel profiles.
Clamping range for profiles: 115 × 100 mm
Mains connection: 230/400 V, 3 ~, 50 Hz
Motor power per spindle: 0.74 kW
Compressed air connection: 7 bar
Air consumption per working cycle:
12 l without spray device
24 l with spray device
Dimensions (L × W × H): 980 × 1,250 × 1,610 mm
Weight: 360 kg
Equipment
Ideal machine for economical door production.
For routing lock cases, profile cylinders and rosettes in aluminum and PVC profiles.
Three fully independently operating copying routing units.
Separate control of the horizontal and vertical routing spindles.
Workpiece clamping upwards against the lock assembly surface, eliminating the need for readjustment with different profile heights.
“Spindle Lock” for quick tool changes.
Flexible stop system with support rollers and adjustable folding stops.
Profile cylinders and rosettes.
