Vakuumfyllingarvél með aukabúnaði

FREY F-LINE F260 + KL6

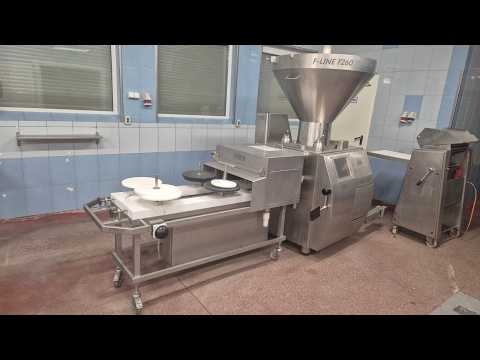

FREY F-LINE F260 + KL6 | Vacuum filler with an attachment for forming kebab slices (Kebab Line)

Manufacturer: FREY Maschinenbau GmbH
Isdpfx Agjzvgtge Ioif
Model / Type: F-LINE F260 + KL6
Serial number: F260PT1392551
Year of manufacture: 2011
Power supply: 400 V / 50 Hz / 3-phase
Power: 10.45 kW
Filling capacity: up to 7,300 kg/h
Maximum filling pressure: up to 50 bar
Vacuum pump capacity: 21 m3/h
Hopper capacity: approx. 300 liters
Portioning range: 5 - 100,000 g
Maximum portioning speed: up to 1,120 portions/min
Control system: FREY Touch Control TC 733 touchscreen

This set consists of a FREY F-LINE F260 vacuum lobe filler and an automatic FREY KL6 forming module, representing a professional, industrial line designed for continuous portioning and precise shaping of meat slices for the production of Döner Kebab rolls. The core of the filler is a modern, maintenance-free servo drive and a lobe pump system with an efficient vacuum pump (21 m3/h), ensuring optimal de-aeration of the filling, consistent weight, and an ideal cross-sectional structure of the finished product.

The FREY KL6 system significantly automates and speeds up the process of arranging meat slices with a constant diameter and thickness, eliminating the need for manual portion selection and reducing labor costs. This set is ideally suited for meat processing plants, companies producing semi-finished products for the HoReCa industry, and specialized kebab manufacturers. The user-friendly FREY TC 733 control panel with a digital interface allows for storing up to 200 recipes and dynamically adjusting operating parameters in real time.
