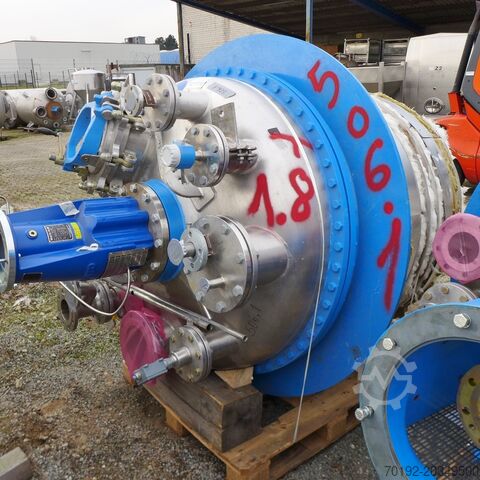

2420 lítra hitan/kælanleg þrýstiker, Aisi 316 með hallaða spaðhræru

HANAG 9018

Location: Bremen
Condition: used
Volume: 2,420 liters
Vacuum: 1.0 bar
Max. Overpressure: 3.2 bar

Vessel

Max. Operating Temperature Vessel / °C: 200°C

Top Head: removable / hinged
Design: suspended

Support Type: ring

Heating/Cooling: available
Double Jacket Volume: 100.0 liters
Max. Permissible Operating Overpressure: 16.0 bar

Heating/Cooling Jacket
Max. Permissible Operating Vacuum Double Jacket / Tube Space / bar: 1.0 bar

Max. Permissible Operating Temperature: 200°C
Cylinder Tempering: half-pipe coil

Heating/Cooling Jacket
Bottom Tempering: half-pipe coil

Internal Diameter: 1,400 mm
Cylindrical Height: 1,180 mm
Total Height: 3,550 mm

Technical Data / Dimensions
Top Head Wall Thickness: 7 mm

Technical Documentation: drawing

Equipment

Manhole / Dome: in the top head

Nameplate:
Fittings: crane lugs

Equipment
Outlet (Alternative Entry): 130 mm

Remarks: manhole DN 350/450 (sight glass in the manhole cover missing); support ring made of Fe; flanges partially made of Fe
Last application: pharmaceutical chemistry
Ksdpfexqav Rex Afwsnc
Product-contacting material: V4A 1.4435 (AISI 316)

Material Specification

Tempering system material: AISI 304 (V2A) 1.4306

Agitator

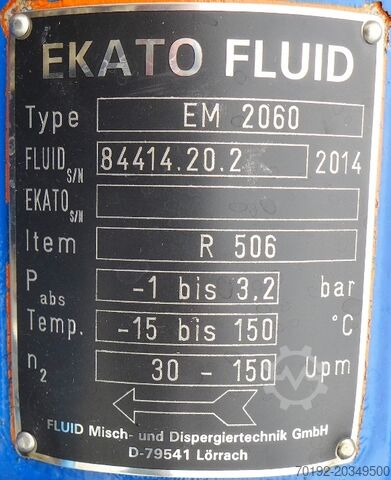

Manufacturer agitator: Ekato

Power: 4 kW
Speed: 235 rpm

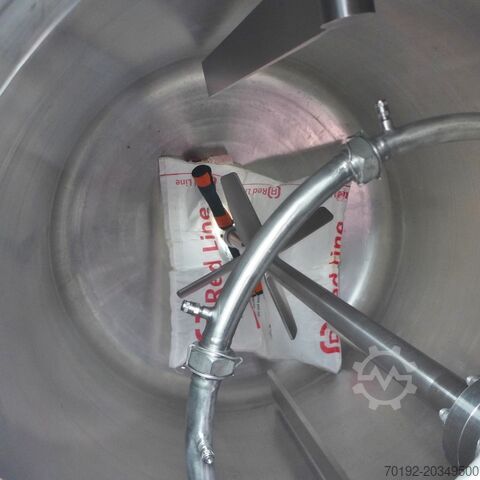

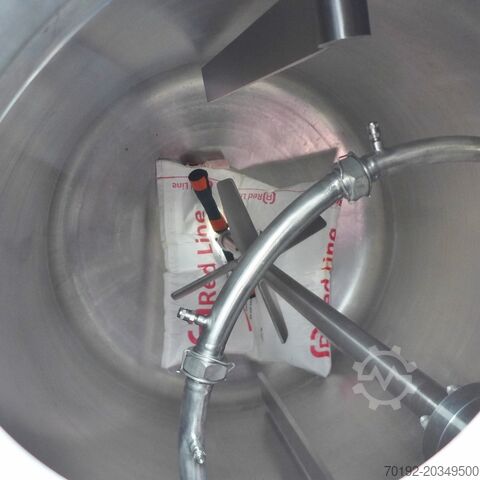

Agitator: inclined blade agitator

Voltage: 400/690 volts

Ex-protected: Motor is ex-protected (compliance with applicable ATEX directives under local conditions must be verified)

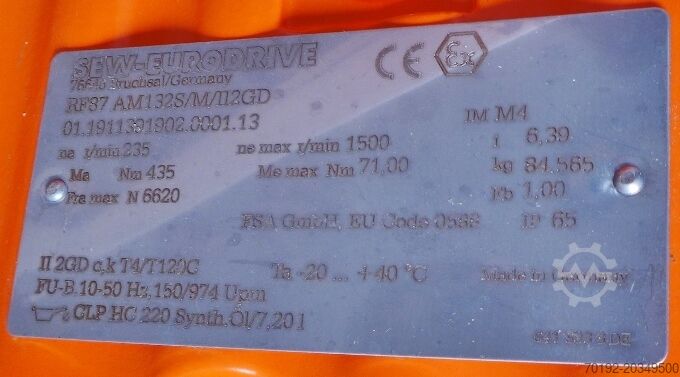

Power Supply:
Agitator arrangement: centrally in the top head
Agitator features: Agitator drive was regulated by the previous owner via an external frequency converter (no longer available) at approximately 30 - 150 rpm
