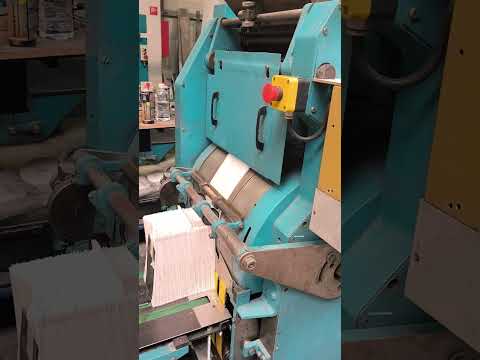

Holweg RS 21 (RS42GL modifiled)

Holweg RS2 (42GL) Year 1988

Brand: Holweg
Model: RS2 (42GL), modified for standard single-channel RS21 operation
Year: 1988

For the production of flat-bottom paper bags, with or without gusset.

Machine overhauled: new electrical components, new 3-phase main motor with frequency inverter, unwind station with new Renova Italy electronic brake system and dancer roller.

Equipped with inline 4-color flexographic printer model IS 80, maximum print width 800 mm.

Printing sleeves included: 4 x 220 mm, 3 x 320 mm, 1 x 370 mm, 1 x 380 mm, 4 x 400 mm, 4 x 430 mm, 4 x 440 mm, 1 x 520 mm, 3 x 520 mm, 3 x 580 mm, 6 x 660 mm, 3 x 680 mm.

Gears:
- 320 mm: 4 printing gears + 2 machine gears
- 340 mm: 4 printing gears + 2 machine gears + 1 printer gear
- 380 mm: 4 printing gears + 2 machine gears + 1 printer gear
- 440 mm: 4 printing gears + 2 machine gears + 1 printer gear
- 520 mm: 4 printing gears + 1 machine gear
- 580 mm (290): 4 printing gears + 2 machine gears + 1 printer gear
- 680 mm: 4 printing gears + 2 machine gears + 1 printer gear

Forming plates: 1 x 90 mm, 1 x 120 mm, 1 x 140 mm, 1 x 150 mm, 1 x 170 mm, 1 x 180 mm, 1 x 200 mm, 1 x 240 mm, 1 x 300 mm.

Note: Gluing knives for different bag widths are not included.

Printer shafts/adapters: 4 printer shafts included, compatible with the printing sleeves listed above.

Perforation type.

Max unwinder diameter: 1,200 mm
Pneumatic shaft: 70 mm

Max paper width: 900 mm
Min–max bag width: 70–340 mm (current owner produced only one bag size: 140 mm width x 260 mm length)
Cut-off length: 190–680 mm
Min–max bag length: 180–670 mm
Dedpsy Iclxsfx Apascn

Working speed: 400–800 bags/min (depending on bag size)
Suitable paper: 30–70 g/m²

Machine can be inspected in operation.
Immediately available.
