UV húðunarkerfi

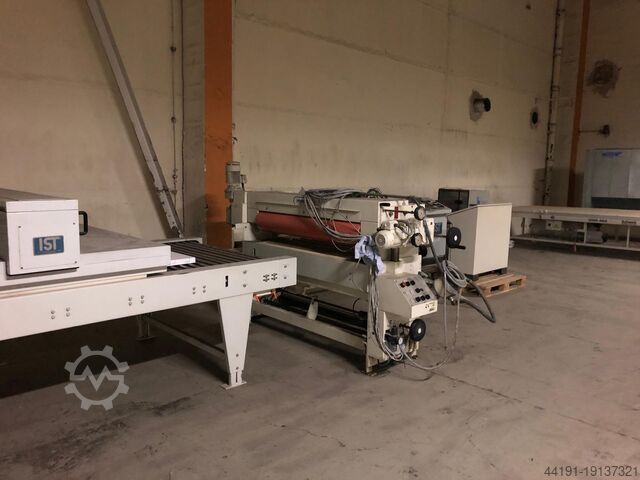

Hymmen ProfiCoater PFC S 1400

Used machine

Year of construction: 1995

completely checked

Economical
- Turbo system: 25% higher system output thanks to the latest application technology and with the same space requirement!
- Shorter throughput times thanks to optimized program automation for fast UV systems
- Up to 70% cost savings compared to casting and spraying thanks to the use of solvent-free systems and one-man operation

flexible
- thanks to cost-effective one-man operation with return function or optionally in a continuous process for two-man operation
- the PC grows; extensions with additional rolling, smoothing or sanding units are possible

Ergonomic
- simple operation thanks to ergonomic operating elements

easy to service
- due to cleaning circuit and quick-change system
Crjdowka Hlspfx Aa Uoh

reliable process
- top surfaces, precisely reproducible



inclusive:

- Roller transport 2000mm long
- ELX 1400 roller conveyor
- Bar conveyor 3000mm long
- UV drying channel 1 lamp 60/80/120 W


Technical data
A B
PFC 1400 1300 mm 3080 mm


Working height: 850 - 950 mm
Rubberized application roller: D=238 mm
Chrome-plated metering roller: D=174 mm
Passage height: 3-120 mm
UV radiation module: 80/120 watt mercury
Connected load: approx. 21 kW

Availability: short term
Storage location: Röllbach
