CNC rennibekkur

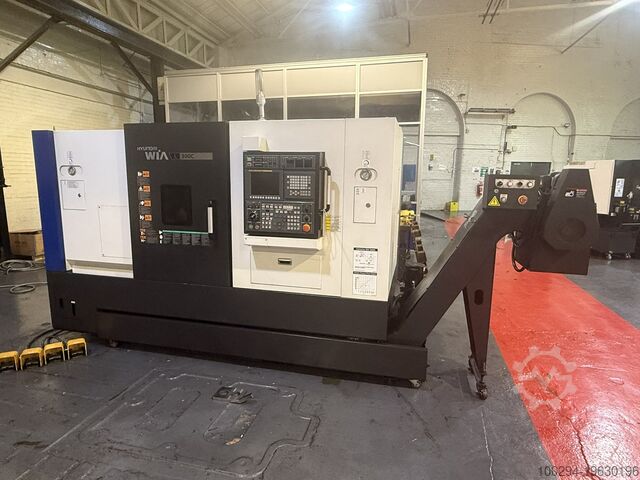

Hyundai Wia L300C

HYUNDAI WIA MODEL L300C 2 AXIS CNC LATHE WITH FANUC 0i-T.
Very Low hours usage -2200 hours cutting time

COOLANT SYSTEM - HIGH PRESSURE 20 BAR
PARTS AUTOMATION - BARFEED INTERFACE

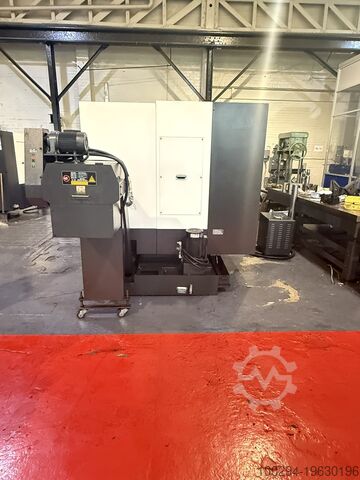

CHIP CONVEYOR - SIDE HINGED

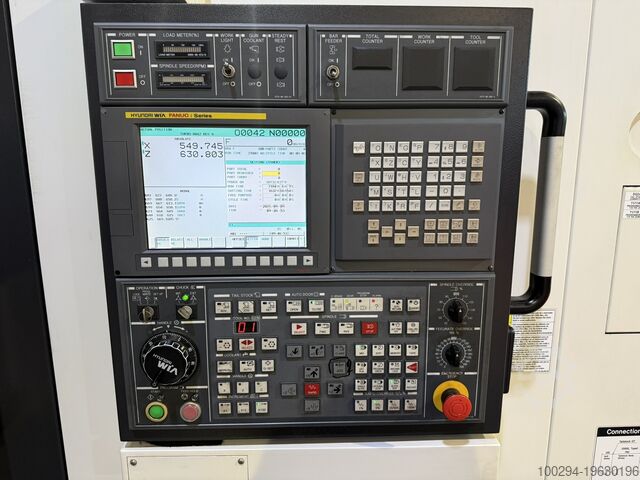

CNC CONTROL OPTION - MANUAL GUIDE-I (NC FANUC 0i)
PROBING - QUICK TOOL SETTER - MANUAL
TRANSFORMER - 35 KVA AND CABLE

MACHINE CONSTRUCTION & FEATURES

• One Piece Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity
• 3,000 Rpm High Power Main Spindle
• Heavy Duty Cutting with Excellent Performance

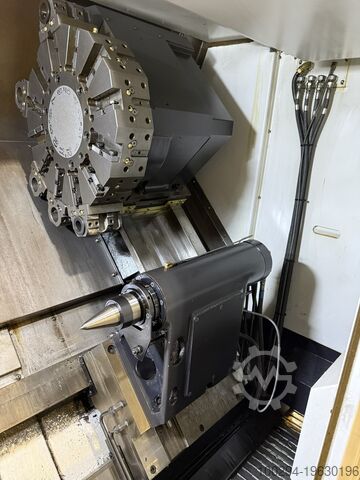

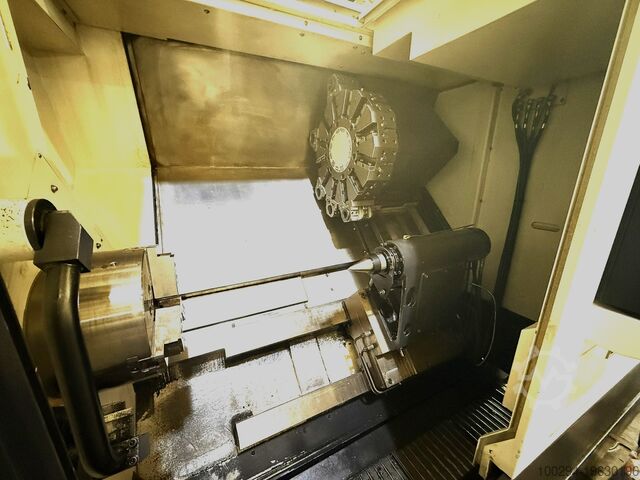

• 12 Station Rigid Turret
• 20 x 24 m/min Rapid Traverse
• Hardened & Ground Solid Box Guide Ways

MACHINE CAPACITIES
Swing Over the Bed Ø 750 mm
Swing Over the Carriage Ø 480 mm
Maximum Turning Diameter Ø 560 mm
Maximum Turning Length 720 mm
Bar Capacity Ø 90 mm

SPINDLE
Chuck Size Ø 305 mm
Spindle Bore Ø 102 mm
Spindle Speed (rpm) 3,000 rpm
Motor (Max/Cont.) 26/22 kW
Torque (Max/Cont.) 1,098/929.7 Nm.
Spindle Type Belt + 2 Step Gear
Spindle Nose A2-8

FEED
Travel X 335 mm
Travel Z 750 mm
Rapid Speed X 20 m/min
Rapid Speed Z 24 m/min
Slide Type Box

TURRET
Number of Tools 12
Tool Size - OD 25 mm²
Tool Size - ID Ø 50 mm
Indexing Time 0.3 Sec/Step

TAILSTOCK
Taper MT 5
Quill Diameter Ø 100 mm
Quill Travel 120 mm
Travel 750 mm

TANK CAPACITY
Coolant Tank 220 L
Lubricating Tank 1.8 L

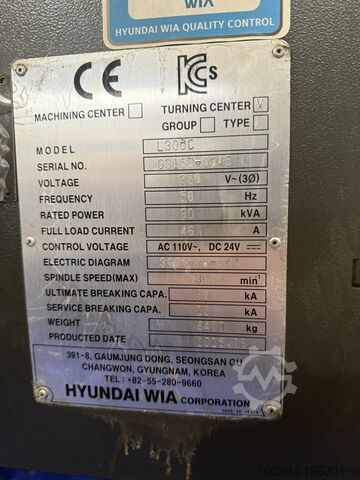

POWER SUPPLY

Electric Power Supply 30 kVA
Thickness of Power Cable Over 35 mm²
Voltage 415 V / 50 Hz / 3 Ph

MACHINE
Floor Space (L x W) 3,506 x 2,002 mm
Height 1,997 mm
Weight 6,400 kg

Csdpfx Aew Dcdysa Usrh
STANDARD SUPPLIED MACHINE FEATURES
• Ø 305 mm Hollow 3 Jaw Power Chuck • 220 L Coolant Tank
• Door Interlock
• Chuck Clamp Foot Switch • Total Splash Guard
• Quill Type Tailstock • Call Light
• Standard Live Centre
• Quick Tool Setter • Levelling Pads
• Operation Manuals • Electrical & Mechanical Drawings
