IBARMIA ZVH/L8000

USED IBARMIA MODEL ZVH/L8000 TRAVELLING COLUMN, BED TYPE CNC VERTICAL MILLING CENTRE

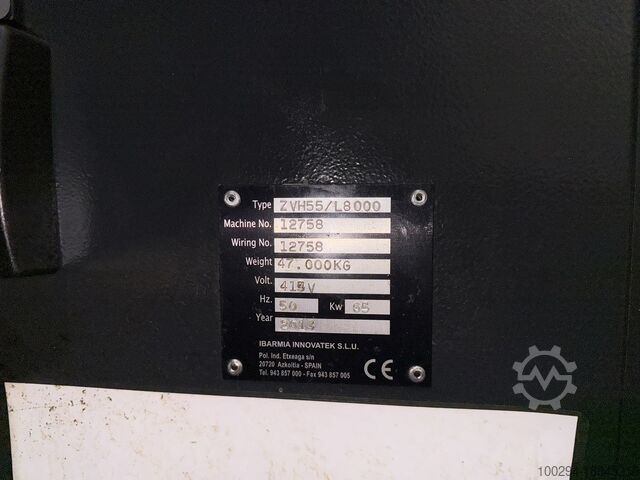

YEAR OF MANUFACTURE 2013 - SERIAL NUMBER 12758

MACHINE CONSTRUCTION & FEATURES

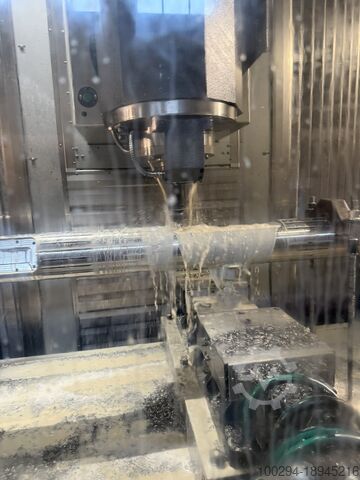

 TRAVELLING COLUMN, BED TYPE CNC VERTICAL MILLING CENTRE WITH CONTINUOUS TILTING HEAD & ATC
 FANUC 31i-B CONTROL SYSTEM WITH 15” SCREEN
 HEAVY-DUTY CAST-IRON BED CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY.
 HIGH PERFORMANCE LINEAR GUIDEWAYS.
 35.0 / 48.0 KW, +/-105 DEG, 6000 RPM, OIL COOLED ELECTROSPINDLE MILLING HEAD.
 40 STATION AUTOMATIC TOOLCHANGER.
 LINEAR GIDEWAYS AND BALLSCREWS
 HEIDENHAIN GLASS SCALES ON ALL AXES
 FULLY ENCLOSED GUARDING SYSTEM.
 MACHINE LEVELLNG ELEMENTS

ADDITIONAL INCLUDED ACCESSORIES, OPTIONS & TOOLHOLDERS

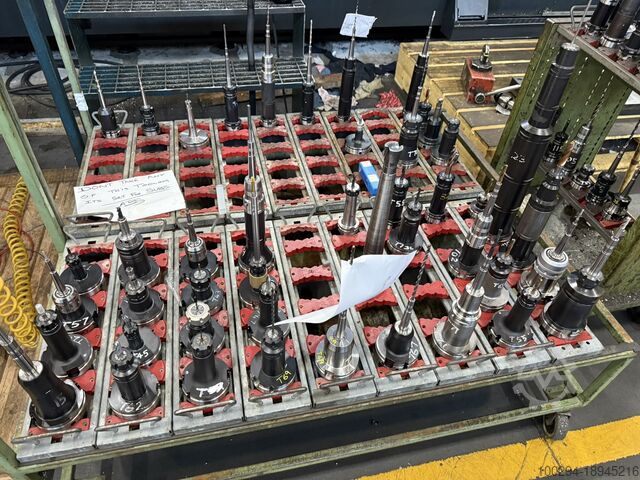

 QUANTITY OF SPINDLE TOOLING.
 22 BAR THROUGH SPINDLE COOLANT
 EXTERNAL COOLANT
 AIR GUN
 SPRAY GUN
 PENDULUM WORKING OPTION
 6 CONTROLLED AXES
 INTERNAL SWARF AUGERS AND CHIP CONVEYOR.
 ELECTRONIC HANDWHEEL

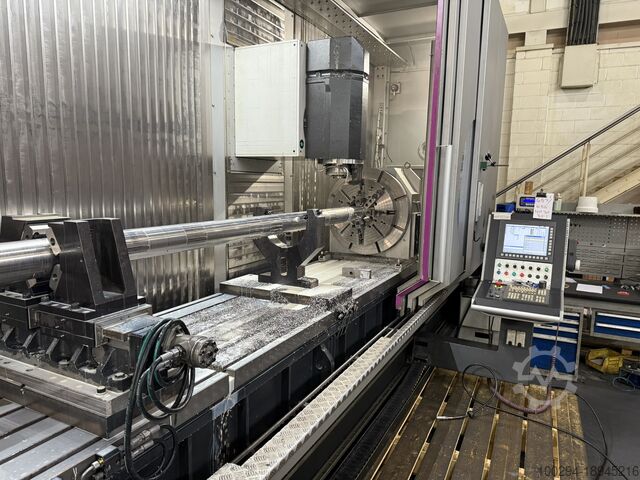

 CNC ROTARY TABLE AND TAILSTOCK
 2 SETS HYDRAULIC STEADIES WITH JAWS

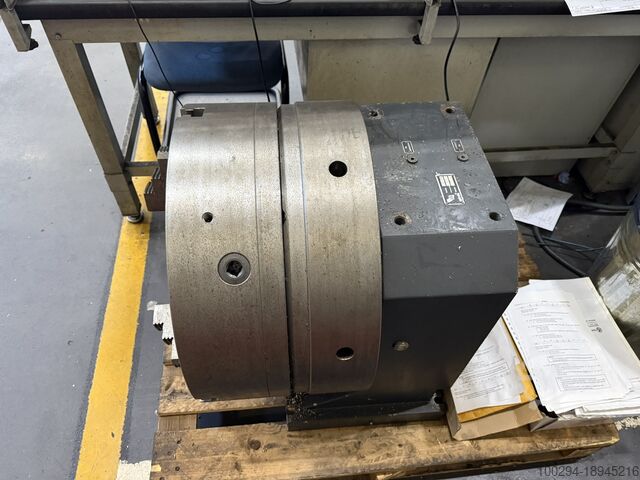

 630MM DIAMETER 3 JAW CHUCK
 BRANKAMP COLLISSION MONTORING
 KOMET KOMTRONIC SYSTEM 22MM CONTOURING HEAD
 MARPOSS MIDA WRS WORKPIECE PROBE
 AUXILLRY HYDRAULICS GROUP
 AIR BLOWING
 ADDITIONAL POTENTIOMETER
 COLUMN MOUNTED OPERATOR PLATFORM INCORPORATING OPERATOR’S PENDANT.
 HORIZONTAL/VERTICAL TOOL EXCHANGE SYSTEM.
 RENISHAW RMP60 PART PROBING SYSTEM.
 SPINDLE TOOLING PACKAGE

TABLE

Fixed Table Working Surface 8,600 x 850 MM
Tee Slot (Size x Number x Pitch) 18 MM X 6 X 125 MM
Maximum Table Load (Uniformly Distributed) 2000 KG/M2

TRAVELS

Longitudinal Travel (X-Axis) 8,000 MM
Vertical Travel (Y-Axis) 800 MM
Cross Travel (Z-Axis) 1,100 MM

MAIN SPINDLE POWER

Spindle Motor Power (S1 - 100% at Continuous Rating) 35.0 KW
Spindle Motor Power (S6 - 40% at Continuous Rating) 48.0 KW

MILLING HEAD

Head Model & Type CONTINUOUSLY DRIVEN WITH TORQUE MOTOR
Tilting Angle +/-105°
Head Spindle Speed - Max BY ELECTROSPINDLE 6,000 RPM
Tool Taper ISO50
Pull Stud DIN 69872
Lubrication System WATER COOLED

SLIDE FEEDS

Number of Feeds STEPLESS ADJUSTABLE
Working Feeds (X / Y / Z) 0 ~ 30,000 MM/MIN
Rapid Feeds (X / Y / Z) 45,000 MM/MIN

AUTOMATIC TOOLCHANGER

Tool Storage Capacity 40 TOOLS
Maximum Tool Length 400 MM
Maximum Tool Diameter - Full Magazine Ø 125 MM
Maximum Tool Diameter - Adjacent Pockets Empty Ø 200 MM
Maximum Tool Weight 20 KGS
Knsdpfx Afewcghaswoc
Tool Change Time 10 SECS
Voltage 380V / 50HZ / 3PH

MACHINE

Total Length including ancillaries 15,090 MM
Width 5,198 MM
Height 3,796 MM
Weight 42,000 KGS

ADDITIONAL PHOTOS
NOTE: The information contained herein is provided in good faith based upon the detail currently available to us however due to unforeseen errors or omissions can be subject to change without notice.
