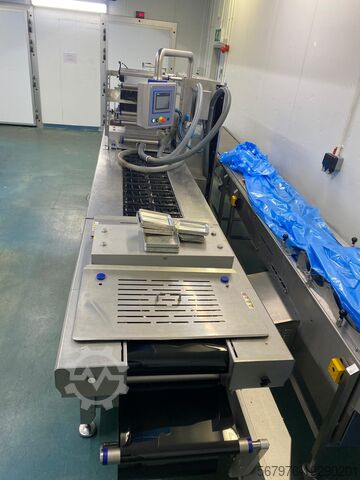

Ilpra Packaging Solutions Formpack F0 TMF Thermoformer

1 x Ilpra Packaging Solutions thermoformer fitted with Siemens S7 1200 PLC control panel and ILPRA thermo-transfer printer mod. I-PRINT (printing area 53 x 400mm). Supplied with 5 x sets of tooling.
Manufacturer - ILPRA S.p.A.
Model - Formpack F0 TMF Long Version.
Date of manufacture - 2019.
Can be used for flexible, semi-rigid and rigid film packs.
Speed - Output with sizes 2.2 and 4.2: approx 4/5 cycles per minute, Output with size 2.1: approx 5/6 cyclese per minute.
Film width - up to 420mm wide.
Maximum diameter of forming film reel - 400mm.
Reel core diameter - 76mm.
Thickness - 500 microns.
Maximum diameter of top web film reel - 250mm.
Reel core diameter - 76mm.
Type of useable sealing film - plastic, aluminium, medical paper, Tyvec.
Electric supply - 400 V / 50 hz / 3 phase.
Compressed air supply -7 bar.
Vacuum pump - Busch.
Tooling external dimensions (internal) - Set 1 - 2x1 format: 197.5mm (177.5mm) x 300mm (280mm). Set 2 - 4x2 format: 98.75mm (78.75mm) x 150mm (130mm). Set 3 - 2x2 format: 190mm x 150mm x (122mm diameter). Set 4&5 - 2x2 format: 197.5mm (177.5mm) x 150mm (130mm).
Njdpfx Aajwp Ac Hemsdc
Previously used for packing various meat products. Last run in May 2025.
