Einhliða formatosmíði og brúnuvinna

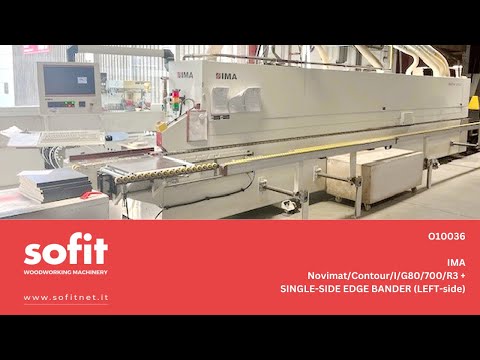

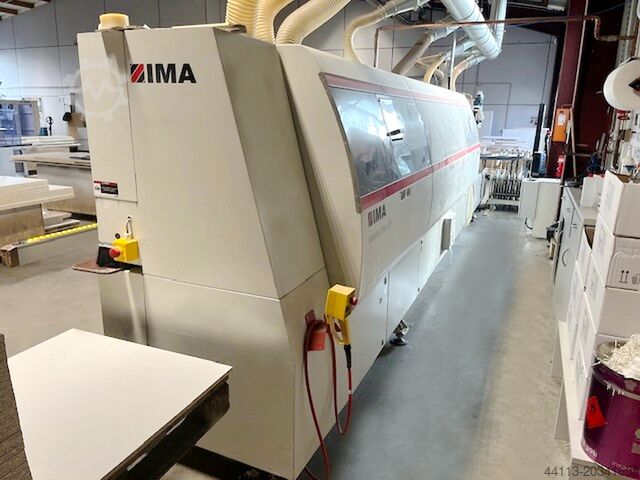

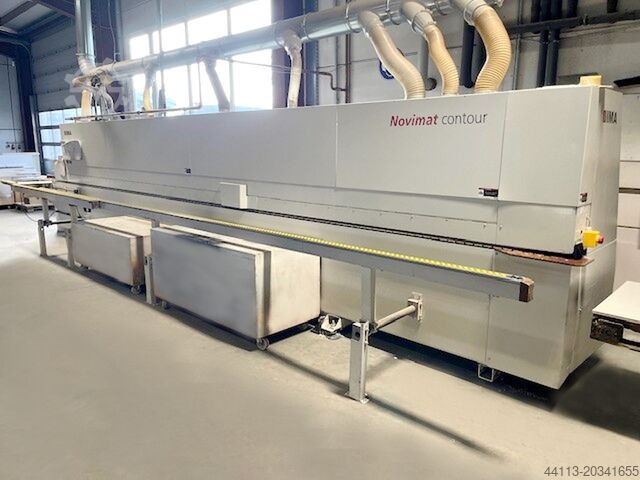

IMA Novimat/Contour/I/G80/700/R3 +

SINGLE-SIDE EDGE BANDER (LEFT-side)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Bwodpfxjxp E R De Ac Usp
Veneer edges limited possible up to max. 1.0 mm
Panels thickness (min/max) mm 8 / 60

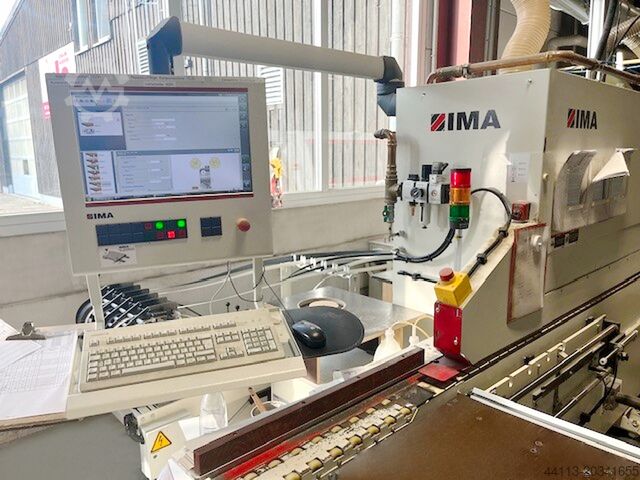

Numerical Control ICOS Open
Feeding speed (adjustable) m/min 6 - 30
Top pressure system with rubber belt
Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C. - Panels in-feed system 63.152 (mm 500 x 500)
Pre-milling Unit (vertical joint trimmers) 08.379 (2 x Kw 4,0) adjustable by N.C.
Glueing Unit (P.U.R. Glue + Quick Melt system) VTG + 283.203

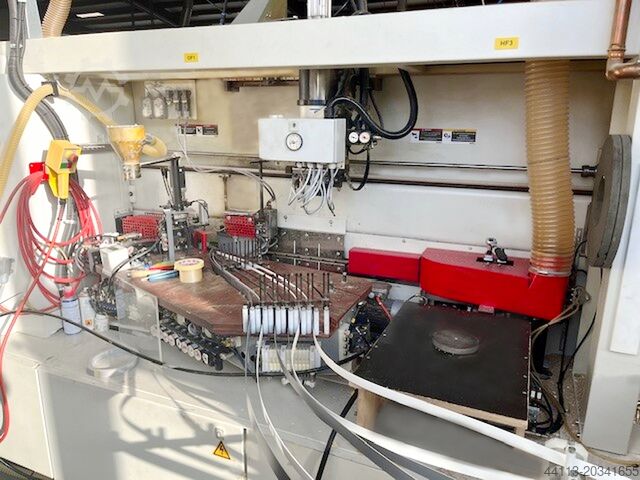

Band Pressure zone + Edge coils supporting unit (No 1 + 6 reels)

Trimming unit 08.055.0.1680 (Kw 1,85 x 1)
Snipping (end-cutting) unit 08.42/30/B (Kw 0,66 x 2) speed 20 + 30 m/min (0°-25°)

Fine Trimming unit 08.0587 (Kw 1.0 x 2) Multi Profile - ( 1 + 3 profiles) by N.C.
Spraying Unit (for sliding liquid)
Multi-Profile Copying unit by N.C (fine and contour trimming) KFA 20 (Kw 0,18) 20 m/min
Profile Scraping unit (Multi-profile, by N.C.) 08.516 (4 profiles)
Glue scraping unit 08.521
Spraying Unit (for polishing liquid)
Buffing unit 08.617-2 (Kw 0.18 x 2)
Milling Grooving unit 08.190 (Kw 4,5 x 1) swivelling 90°/180°/270° (adjustable by CN) (H + V)
