CNC porthole fræsivél INNSE Berardi Ceruti 25 – 2002

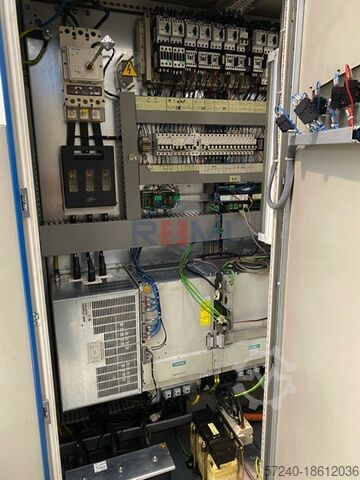

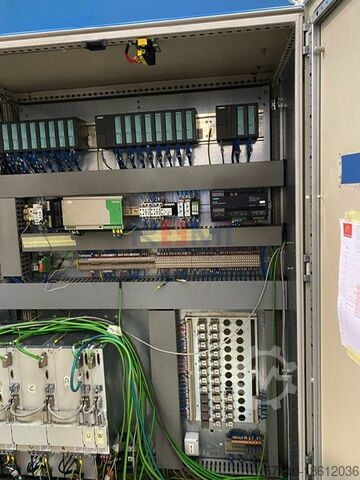

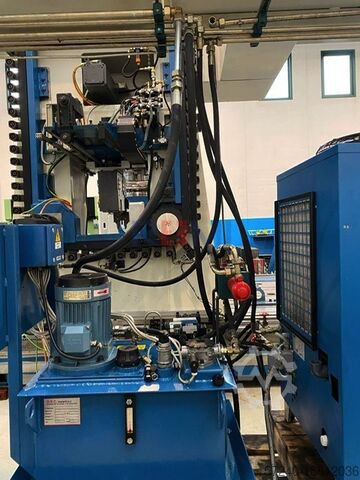

INNSE BERARDI CERUTI 25

Operating travels of the axes for the CERUTI 25 model


X Axis: Working travel 10000 mm, electrical emergency overtravel 2 mm (max), mechanical emergency overtravel 50 mm.
Y Axis: Working travel 2500 mm, electrical emergency overtravel 2 mm (max), mechanical emergency overtravel 50 mm.
Z Axis: Working travel 1000 mm, electrical emergency overtravel 2 mm (max), mechanical emergency overtravel 50 mm.
A Axis: Working travel +/- 95°.
C Axis: Working travel +/- 200°.
T Axis: Continuous travel.

Operating speeds of linear axes


X, Y, Z Axes: 20.000 mm/min.

Axis accelerations


X Axis: 1000 mm/sec².
Y, Z Axes: 1000 mm/sec².Note: Accelerations may vary depending on the installed CNC type.

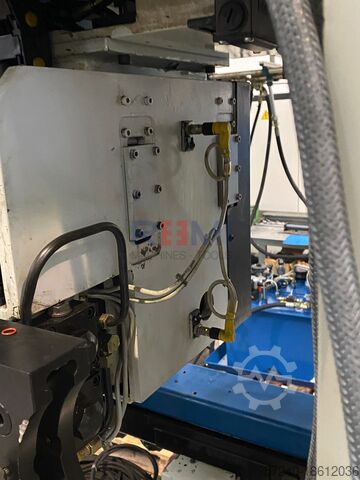

Spindle


Type: ISO 40, ISO 50, Electrospindle HSK A63.
Power: 30 KW.
Torque: 280 Nm.
Maximum speed: 12.000 rpm.

Mounted tool holder type


HSK A63.

Tool changer type S.G.M.


Number of positions: 20, 30, 74.
Max diameter for adjacent positions: 100 mm.
Max diameter for non-adjacent positions: 200 mm.
Hodpfxjv D U Ifs Af Rong
Maximum length: 300 mm.
Maximum tool weight: 12 Kg.
Tool change time: 20 sec.

Technical data are subject to change without prior notice.
