Tvídálka teiknipressa - Vökvakerfi

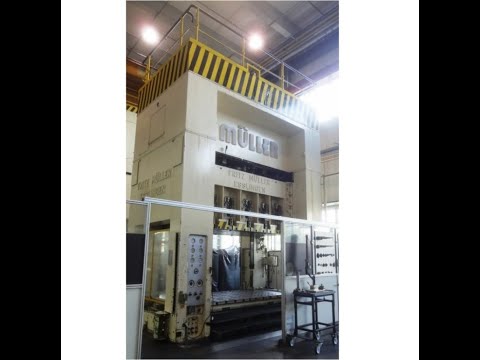

MÜLLER ZE 800-35.2.1

Pressure 800 t
distance between columns 3550 mm
stroke 1100 mm
Distance table/ram, max. stroke up, adjustment up 1900 mm
Table surface area 3500 x 1800 mm
pressure of drawing cushion in table 350 t
Die cushion stroke in table 280 mm
Die cushion pressure in ram 80 t
Die cushion stroke in ram 160 mm
Ram surface 3500 x 1800 mm
Side window 1900 mm
Weight 100,0 t
Floor Space (WxD) 5,3 x 4,3 m
Height above floor 7,3 m
Height below floor 5,0 - 6,0 m
year of manufacture 1970 - overhaul 1998
with oil-hydraulic drive, hydraulic controllable drawing cushion in table and ram, hydraulic cutting impact cushioning, moving table (without rails for the moving table)
Gbodpfx Asvuuhgod Tji
Height beneath floor approx. 5 - 6 m
stored in dismantled condition - Video at seller’s site before dismantling available
