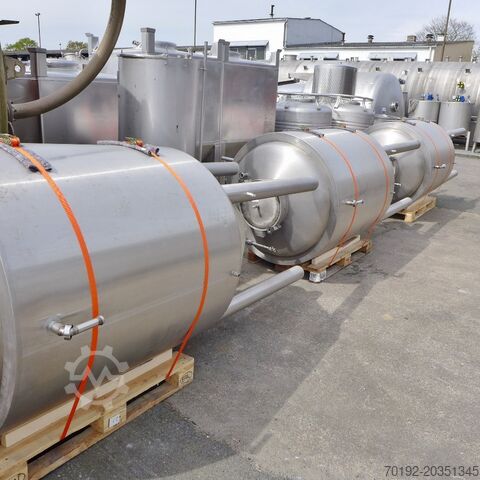

1285 lítra hitahæft/kælanlegt ílát / mjókkandi gerjunartankur úr V2A

8631

GENERAL
Equipment: Disk valve, spray head
Design: upright/vertical
Remarks: According to information from the previous operator, the tanks were most recently used as fermentation tanks in a brewery with an operating pressure of +2 bar. According to the drawing, the tanks were approved for a test pressure of +4 bar. However, a TÜV inspection was not carried out. Manway diameter: 350 mm. On one tank, one height-adjustable cap screw for the feet is missing; on another tank, the manway cover suspension is incomplete.

External diameter: 1,160 mm
Internal diameter: 1,000 mm
Total height: 3,050 mm
Heating/Cooling: present
Insulation: present
Max. overpressure: 2.0 bar
Foot design: height-adjustable feet
Location: Bremen
Technical documentation: drawing
Cylinder temperature control: double jacket
Volume: 1,285 liters
Cylinder wall thickness: 2 mm
Product-contact material: V2A 1.4301 (AISI304)
Condition: used
Cylindrical height: 1,250 mm
Last application: brewery

TANK
Max. admissible operating temperature: 50 °C
Bottom shape: conical bottom
Number of feet: 4 pcs

HEATING/COOLING JACKET
Bottom temperature control: double jacket

INSULATION
Insulation jacket: hermetically welded
Insulation material: stainless steel

EQUIPMENT
Manway / dome: in top plate
Godpjxqcnvofx Ad Tjip
Outlet: DN40 DIN 11851
Note: slight residue

MATERIAL SPECIFICATION
Temperature control system material: V2A 1.4301 (AISI304)
Feet material: stainless steel

TECHNICAL DATA / DIMENSIONS
Bottom wall thickness: 2 mm
Top wall thickness: 2.5 mm
