Lágvagn hálftrailer

EBERT TLS 55 ATV / Tele / 39,5to Nutzlast

Technical data for EBERT TLS 43 ATV special low loader:
* Permissible fifth wheel load: 19,000 kg
* Permissible axle load: 36,000 kg
* Permissible total weight: 55,000 kg
* Empty weight according to DIN approx.: 15,500 kg
* Low bed length i.L.: approx. 6,650 mm + 4,000 mm
* Axle table length: 3,550 mm
* External width: 2,550 mm
* Loading edge/low bed: approx. 200 mm - 350 mm
* Sliding table length: 500 mm
* Widening/low bed to: 3050 mm
* Low bed/telescopic by: 4,000 mm
* B-dimension: 13,300 mm
* Entire vehicle flame-spray galvanized, with epoxy resin primer and 2K paint
* Extra-wide signage at the front and rear with red/white signs
Wheels: 13 x Michelin 245 / 70 R 17.5 X MULTI T VB 143J/146F
Steering: TRIDEC DLS with Tritronic
Axles: 12,000 kg ? DLS independent wheel suspension, hydraulically steered and hydraulically sprung

Front loft bed: * Side walls 600 mm high
Cedpfx Aoh Tvm Ioa Uerh
* Corners on the loft bed angled at the front
* Doors in the left and right corners accessible from the outside
* Lockable storage box with lid behind the front wall, height 600 mm, width 2,480 mm, depth 7,500 mm
* Spare wheel on the loft bed, behind the partition on the right
* Stairs on the right-hand side to get from the low bed to the front loft bed
* Hydraulic coupling for uncoupling on the left-hand side 6-way Multi-Faster coupling
* 6 lashing positions 3,000 kg version outside on the loft bed (drop lashing eyes)
* 2 lashing positions 5,000 kg version at the top of the longitudinal strands (to the rear)
 Low bed: * Climbing aids on the boom ? Extension
* Outer frame t=8 mm
* Low bed can be telescoped by 4,000 mm and locked every 500 mm
* With sliding table, lockable every 250 mm
* 28 lashing positions 10,000 kg, outside version in the outer frame
* 24 plug-in tubes 90 x 90, evenly distributed to widen the low bed to 3,050 mm
* 50 mm hardwood planks are placed between the extension tubes, 10 mm overhang

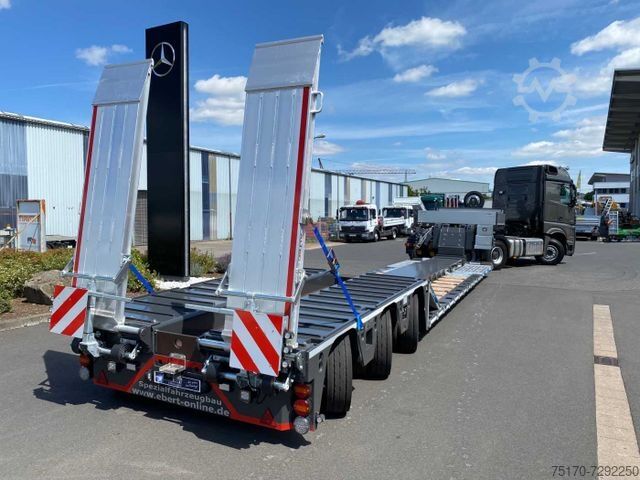

 High bed at the rear: * High bed slanted towards the front and perforated, for retrofitting ramp support profiles, using adapters, galvanized version
* Ramp support profiles at the rear (Altec) ? C - rails
* 8 lashing positions 10,000 kg version on the outside of the raised bed
* 6 lashing positions 5,000 kg version in the excavator trough
* 10 lashing positions 5,000 kg version for extra width in the outer frame
* Excavator trough closure at the front and rear with a wooden base plate (plug-in)
 Electrics: * Use NATO coil, power comes from the towing vehicle
* Rotating beacon in the middle of the rear
* Side lights in LED version
* Standard rear light for vertical mounting (LC5)
* Work lights on the raised bed, to illuminate the low bed
* Extra width signs at the front and rear for controlling uncoupling, sensor for safety and pressure switch for the suspension
Air:
* Aluminum air tank 80 l
* TEBS modulator
* Locking pull-out left and right (valve on the side in the raised bed at the back)
* Double release valve
 Hydraulics: Hydraulic system on the High bed for steering, suspension and detachable gooseneck
Accessories: * 2x 4 wooden planks as support for widening the low bed and intermediate table
* 2 safety wedges for uncoupling
* 4 wheel chocks

We can make you a leasing or financing offer on request., Mr. Ebert (Tel. will be happy to assist you., You can find further information on our homepage., Subject to errors and prior sale!
