Plötulímingarlína Master PUR-1400 (2016)

Master PUR-1400

Laminate Coating System
Manufacturer:
Type: Master PUR-1400
Year of manufacture: 2016
Technical data
Professional PUR hot-melt laminating system for acrylic, PET, PVC, HPL, and CPL sheets
General description
The MASTER PUR-1400 is a professional, high-performance laminating system designed for single-sided lamination of sheets with PUR hot-melt adhesive. The system is suitable for continuous industrial production and offers excellent surface quality with low adhesive consumption.
It is designed for the production of high-quality furniture panels, interior design components, wall panels, and decorative panels.
Suitable substrates
The machine is suitable for laminating:
MDF
Chipboard
Plywood
Iodozuzkqopfx Apnsbc
PVC sheets
Gypsum boards
Other wood-based panels
Compatible surface materials
The system is designed for processing the following materials:
Acrylic sheets (high gloss & super matte)
PET film
PVC film
HPL laminate
CPL laminate
Decorative paper
Technical data
Working width: 1,400 mm
Maximum sheet size: 2,800 x 1,300 mm
Sheet thickness: 2-40 mm
Production speed: 5-17 m/min
Throughput: 3-5 sheets/min
Maximum productivity: up to approx. 1,200 sheets per 8-hour shift
Installed motor power: 21.49 kW
Heating power: 51.7 kW
Overall dimensions of the machine: approx. 16 x 2.5 x 2 m
Required installation area: at least 6 x 22 m
System configuration
The production line includes:
Automatic feeding system with roller conveyor
Brush cleaning system for sheets
Infrared preheating oven (IR)
3-roller PUR adhesive application system

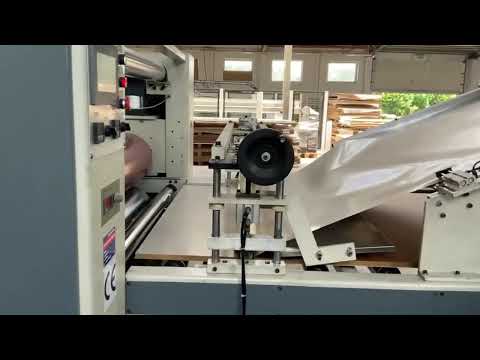

Feeding station for decorative material
Laminating press with pressure rollers
Take-away conveyor
208-liter melting tank for PUR hot-melt adhesive
Advantages
Excellent laminating quality
Uniform PUR adhesive application
Suitable for high-gloss and super-matte acrylic surfaces
Low adhesive consumption
Stable and reliable operation in industrial series production
High production efficiency
Easy operation and maintenance
Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
