Bretti rekki, þungur rekki, hár rekki

Mecalux / 19,86 lfm. / Ständer: 2.000 x 1.100 mm / Traversen: 2.700 mm

Your contact person in our company:
Mr.: Andre Evering
Mr.: Mario Klöver
Mr.: Falk Deutsch

Technical data of the pallet racking system:
Racking system: Mecalux

Technical data for the installation:
Number of racking rows: 01 pcs.
Length per rack row: approx. 19.860 mm
Number of bays per row: 07 pcs. á 2.700 mm
Number of levels plus floor level: 02pcs.

Technical data on volume:
Pallet spaces per bay: 09pcs.
Number of pallet spaces per rack row: 63 pcs.
Total number of pallet spaces: 63 pcs.

Kdodpfjh Dzcxjx Acxow
issued from:
Loading equipment: Euro pallet EN 13698-1
dimensions: 1.200 x 800 x 150 mm
Total height incl. pallet: n.d.
Weight per pallet ( max. ): 1.000 kg

Included in delivery:

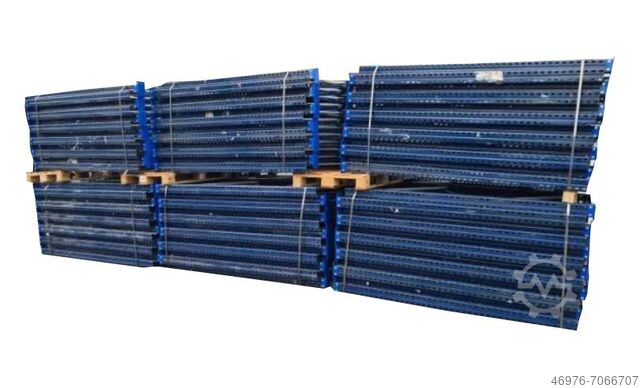

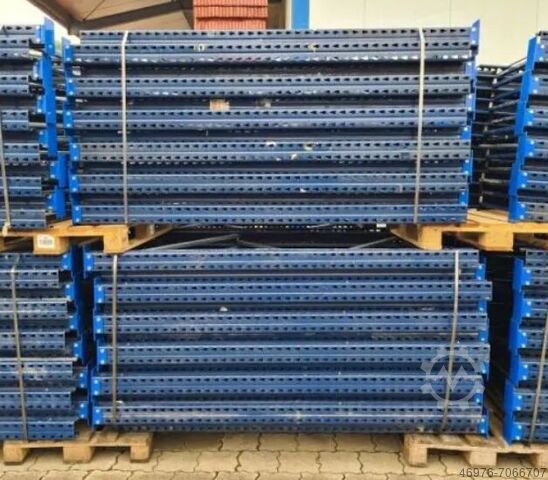

08x pallet rack stand, used
material color: blue
upright profile dim.: P 120 mm o. P 100 mm
Incl. cross and diagonal braces,
Base plates
The uprights are pre-assembled
( screwed truss )
2.000 mm high
1.100 mm deep

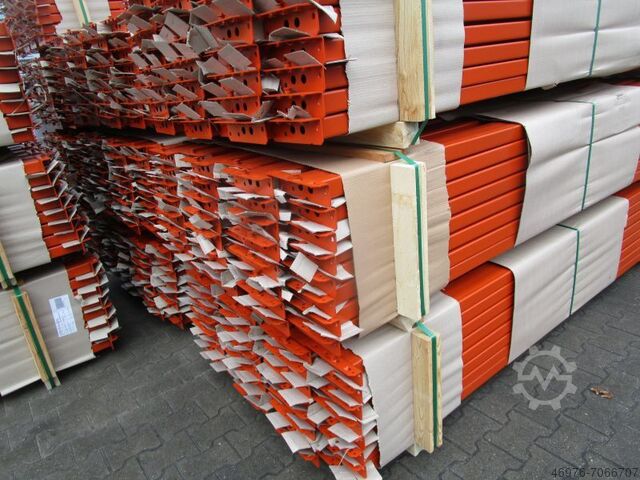

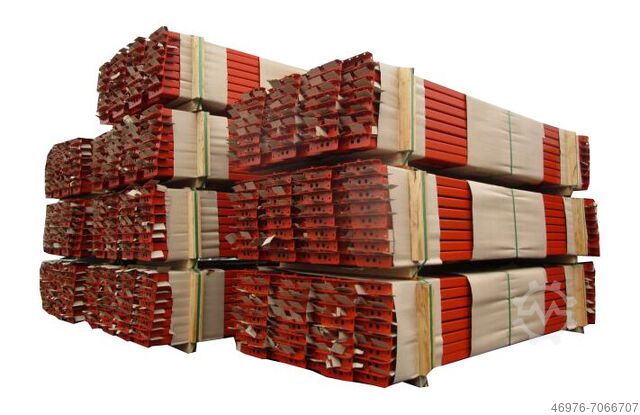

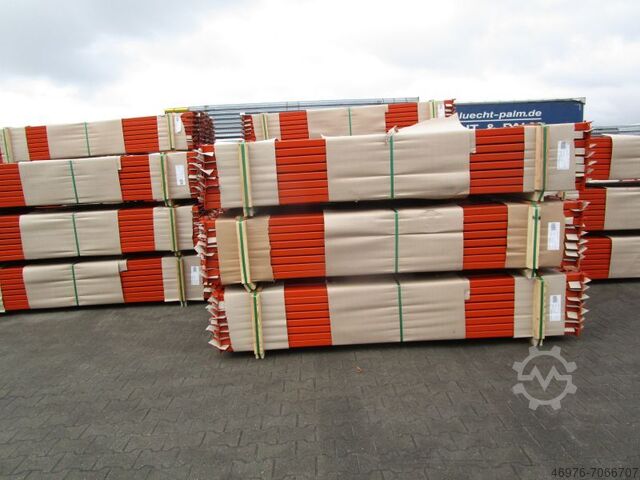

28x pallet rack truss, new
Material color: RAL 2001 orange
type of truss: 2C-S 1115
box profile: 110 x 50 mm
clear width: 2.700 mm
weight / pcs.: approx. 15,100 kg
max. load per truss pair
3,000 kg with evenly distributed load

56x integrated safety pin, new
To secure the longitudinal beams
against unintentional lifting out

32x heavy duty dowel, new
Manufacturer: MKT
Execution: galvanized steel
Approved for: non-cracked concrete
through hole mounting: M 12-13/95

16x shims, new
execution: complete galvanized
for levelling of the racks which are placed
are placed on uneven ground

01x load plates
with data of field and shelf loads,
manufacturer and commission number
Dimension: 80 x 220 mm

General information about the article:
This article is offered for pickup only. Any additional transport or shipment of this
or a shipment of this item is associated with additional costs, which can be requested separately
depending on the place of delivery or scope of delivery can be requested from us.
Our services at a glance:
(prices on request)
Assembly, erection
our general assembly conditions are to be considered
Rack inspection
Rack inspection according to DIN EN 15635 executed according to the
requirements of BGR 234 Visual inspection for all racking systems
Delivery with our own fleet of vehicles
(without unloading)
