## CNC PRESS BRAKE SPB 110T × 3200 | HACO 70S | 4+1 AXES

The SPB 110T × 3200 is a professional electro-hydraulic CNC press brake with a bending force of 110 tons and a working length of 3200 mm. Designed for precise sheet-metal bending in both individual and series production.

The electro-hydraulic servo synchronization system and linear scales monitoring the ram position provide high accuracy, stability and repeatability. The machine is equipped with high-quality hydraulic, electrical and drive components from recognized manufacturers.

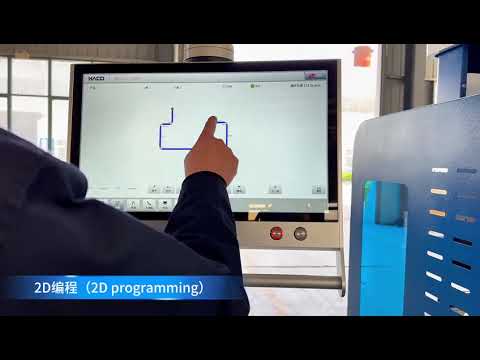

HACO 70S CNC CONTROL – 4+1 AXES

• Y1/Y2 – independent control of the left and right sides of the ram
• X – precise backgauge positioning
• R – vertical adjustment of the backgauge fingers
• V – automatic CNC table crowning compensation

TECHNICAL DATA

• Bending force: 1100 kN / 110 T
• Working length: 3200 mm
• Distance between columns: 2700 mm
• Throat depth: 400 mm
• Ram stroke: 200 mm
• Maximum opening height: 480 mm
• Controlled axes: Y1, Y2, X, R + V (4+1)
• CNC controller: HACO 70S
• Motor power: 8.5 kW
• Fast approach speed: 180 mm/s
• Bending speed: 13 mm/s
• Return speed: 170 mm/s
• Dimensions: 3850 × 1650 × 2680 mm

PREMIUM COMPONENTS

• CNC control system – HACO 70S
• Servo motor and drive – INOVANCE / ESTUN
• Main servo motor – INOVANCE / ESTUN
• Main hydraulic valve – HACO + Rexroth
• Hydraulic pump – Rexroth / HYTEK (USA SUNNY)
• Hydraulic cylinders – HONGWEI / WUYANG
• Backgauge ball screw – TAIWAN
• Linear guides – TAIWAN
• Hydraulic fittings – Germany EMB
• Cylinder seals – Japan NOK
• Linear scales – HACO
• Main electrical components – Schneider
• Laser safety protection – Italy DSP
• Rear safety light curtain – LNTECH
• Push-button quick tool clamping system
• Foot pedal control

ACCURACY

• Ram positioning repeatability: ±0.01 mm
• Ram positioning accuracy: ±0.02 mm
• Backgauge repeatability: ±0.02 mm
• Bending straightness: 0.3 mm / 1 m
• Bending angle accuracy: ±1–1.5°
• Linear scale resolution: 0.005 mm

EQUIPMENT

• Electro-hydraulic servo synchronization system
• CNC automatic table crowning compensation
• Backgauge with linear guides and ball screw
• Adjustable front material supports
• Quick tool clamping system
• V8–V12 tooling set

The upper tool is segmented into 835 mm sections, with one section additionally divided into shorter segments, providing greater flexibility when bending complex workpieces.
Lajdpfx Aoy D Nvioh Rsg

The SPB 110T × 3200 combines advanced 4+1-axis CNC control, high positioning accuracy and quality components from recognized manufacturers, providing efficient, precise and repeatable performance for professional sheet-metal fabrication.
