Alhliða rennibekkur 360 × 1000 DRO

Metal Technics Polska Tokarka Uniwersalna 360x1000 MTP

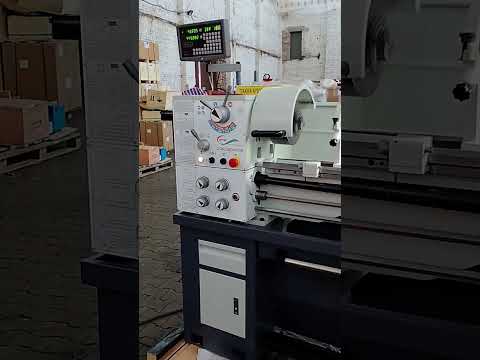

## MTP CQ6236G×1000 / 360×1000 UNIVERSAL LATHE
### 2-AXIS SINO DIGITAL READOUT + REMOVABLE GAP BED

The lathe is available immediately!

Brand-new professional MTP CQ6236G×1000 universal lathe, designed for precision metalworking in workshops, tool rooms, production facilities and maintenance departments.

The machine is suitable for external and internal turning, longitudinal and cross turning, taper turning, drilling, and cutting metric and imperial threads.

The lathe is equipped with a SINO SDS2-3VA digital readout for two axes, providing continuous control of the carriage position and improved accuracy and repeatability.

The heavy-duty 188 mm wide bed features induction-hardened guideways, ensuring high rigidity, stability and resistance to wear. The removable GAP BED allows machining of larger-diameter workpieces close to the spindle.

The large 52 mm spindle bore enables machining of shafts and bar stock. The D1-4 spindle nose provides secure mounting of the chucks.

### Technical specifications

- Model: MTP CQ6236G×1000
- Swing over bed: 360 mm
- Swing over cross slide: 224 mm
- Distance between centers: 1000 mm
- Bed width: 188 mm
- Bed guideways: induction-hardened
- Spindle bore: 52 mm
- Spindle nose: D1-4
- Spindle speed range: 90–2000 rpm
- Maximum tool size: 16 × 16 mm
- Longitudinal feed range: 0.078–1.044 mm/rev
- Cross feed range: 0.018–0.238 mm/rev
- Metric thread range: 0.45–10 mm
- Imperial thread range: 2.25–40 TPI
- Tailstock quill diameter: 32 mm
- Tailstock taper: MT4
- Main motor: 1.5 kW
- Coolant pump: 0.1 kW
- Work light: 24 V
- Dimensions: 1850 × 700 × 1290 mm
- Weight: 650 kg

### Standard equipment

- SINO SDS2-3VA digital readout – 2 axes,
- 200 mm 3-jaw chuck,
- 200 mm 4-jaw chuck,
- fixed steady rest,
- follow rest,
- reducing sleeve,
- fixed center,
- coolant system,
- 24 V work light,
- thread pitch indicator,
- removable gap bed,
- chuck guard and safety covers.

### Sales conditions

- brand-new machine,
- 12-month warranty,
- warranty and post-warranty service,
Njdsyrq Nxspfx Ai Tewl
- CE declaration of conformity,
- technical documentation in English,
- transport to the customer can be arranged.

Transport within Europe can be arranged for an additional fee. Delivery costs are calculated individually depending on the destination.
