CNC lárétt og lóðrétt skurðvél

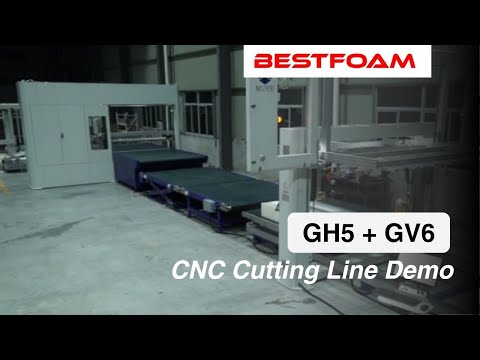

MUYE GH5 + GV6

This line is particularly well-suited for foam converting operations in the mattress and upholstery sectors, where high precision and throughput efficiency are critical.

Line components:

The GH5 Model provides rapid, precision horizontal cutting using a continuous blade system. It features an automated, rotating conveyor table, enabling cuts along both the X and Z horizontal axes.

Maximum foam block size: 2300×2300×1500 mm
Cutting speed: 30 m/min

The GV6 Model is an advanced CNC cutting solution equipped with a continuous blade, specifically engineered for high-speed vertical axis cutting.

Maximum foam block size: 3000×2200×1250 mm
Cutting speed: 60 m/min

Scissor-Type Lift Table – Installed between the GH5 and GV6 units, this intermediate lifting table ensures precise height compensation during block transfer. The GH5 worktable height is 600 mm, while the GV6 table stands at 1000 mm. The scissor lift mechanism of the intermediate table automatically bridges this height difference, providing smooth, controlled elevation of the foam block to the intake height of the subsequent cutting unit.

Lifting Range: 500–1000 mm
Conveyor speed: up to 40 m/min

Infeed and Outfeed Fixed Tables (2 units) – Located at the entry and exit of the production line, these robust, stationary tables support block loading and unloading operations. They are level-aligned with the cutting units to ensure seamless, continuous workflow without interruptions.

Conveyor speed: up to 40 m/min
