VinnslustöðOptimat Weeke
BP 155
Upplýsingar um vélina
- Heiti vélar:
- Vinnslustöð
- Framleiðandi:
- Optimat Weeke
- Gerð:
- BP 155
- Vélar númer:
- 0-250-05-2654
- Framleiðsluár:
- 1998
- Ástand:
- tilbúinn til notkunar (notaður)
- Virkni:
- fullkomlega virkur
Tæknilegar upplýsingar
- X-áss færi:
- 3.950 mm
- Y-áss færsla:
- 1.943 mm
- Förfaravegalengd Z-áss:
- 400 mm
- Stýrislíkarlíkan:
- HOMATIC-2000 IPC
veiting
- Staðsetning:
- Großpolen, Pólland
– Fjarlægð: um 2.438 km
- Aðgengi:
- strax eftir að uppboði lýkur
- Afhendingarskilmálar:
- FCA
ókeypis
ókeypis
Lýsing
TECHNICAL DETAILS
Travel distances
X-axis: 3,950 mm
Y-axis: 1,943 mm
Z-axis: 400 mm
Vertical drilling unit X-direction
Drilling spindles: 16
Feed stroke Z: 60 mm
Drilling depth: max. 38 mm
Rotation direction: right/left
Speed: 1,500 - 5,900 rpm
Drive: 1.5 kW
Drill chuck: d= 10 mm
Total drill length: 70 mm
Drill diameter: max. 20 mm (15 spindles), 1 spindle up to 25 mm, max. 35 mm (1 reinforced spindle)
Spindle spacing: 32 mm (15 spindles)
Spindle type: individually controllable
Extraction: central
Vertical drilling unit Y-direction
Drilling spindles: 15
Feed stroke Z: 60 mm
Drive: 1.5 kW
Rotation direction: right/left
Speed: 1,500 - 5,900 rpm
Drill chuck: d= 10 mm
Drilling depth: max. 38 mm
Total drill length: 70 mm
Drill diameter: max. 20 mm, 1 spindle up to 25 mm
Spindle spacing: 32 mm (15 spindles)
Spindle type: individually controllable
Configuration: Y-direction
Horizontal drilling unit X-direction
Drilling spindles: 4
Drilling depth: max. 38 mm
Drill height Z-direction: 38 mm
Rotation direction: left
Speed: 4,800 rpm
Drill chuck: d= 10 mm
Total drill length: 70 mm
Drill diameter: max. 20 mm
Spindles: individually controllable
Horizontal drilling unit Y-direction
Drilling spindles: 2
Drilling depth: max. 38 mm
Drill height Z-direction: 38 mm
Rotation direction: right
Speed: 4,800 rpm
Drill chuck: d= 10 mm
Total drill length: 70 mm
Drill diameter: max. 20 mm
Spindle type: individually controllable

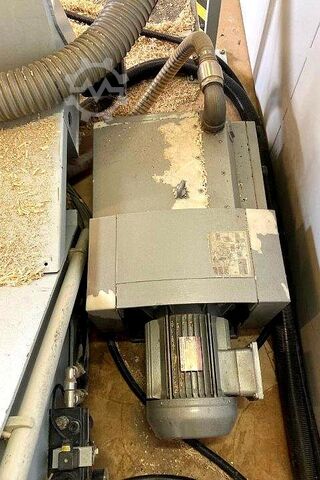

Milling motor
Drive power: 7.5/10 kW (S1/S6 operation)
Speed range (stepless): 750 - 18,000 rpm
Cooling: liquid circulation cooling
Bearing: hybrid bearing (ceramic)
Extraction: central
Tool changer magazine
Magazine positions: 30 tool positions
Tool weight: max. 5 kg
Changing time: approx. 8 - 10 seconds
MACHINE DETAILS
Control: HOMATIC-2000 IPC
EQUIPMENT
Workpiece support system 1,500 mm
Workpiece console K-table 1,500 mm
Gantry extension Y-direction 120 mm
Pneumatic connection strip with quick couplings
Extraction hood for additional router motor
Router 5 kW with hydro quick clamping system
Protective grid left with door
Safety tread mat 3,250 mm
Control cabinet left
Note: Further details regarding the machine's equipment can be found in th
