Vinnslumiðstöð - lóðrétt

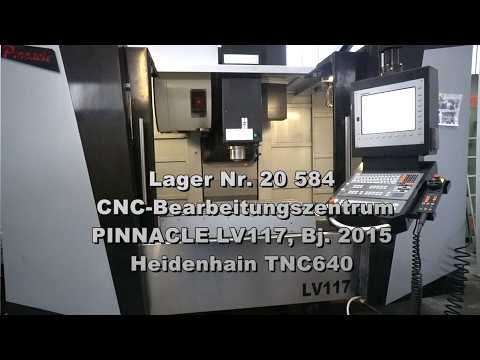

PINNACLE LV 117 / TNC 640

x-travel 1140 mm
y-travel 710 mm
z-travel 610 mm
CNC-control Heidenhain TNC640
table-size 1300 x 700 mm
max. table load 1000 kg
spindle taper SK 40
spindle turning speed range 8.000 U/min
feed stepless max. 10.000 mm/min
rapid traverse 24/24/24 m/min
tool change unit 30 Pos.
coolant IKZ 40 bar
drive capacity - spindle motor 7,5 / 11 kW
voltage 400 V
total power requirement 25 kVA
weight of the machine ca. 9,0 t
dimensions of the machine ca. 3,25 x 3,08 x 3,00 m
chip conveyor 4,30 x 0,80 x 1,60 m
band filter unit 2,00 x 1,00 x 1,30 m
coolant tank 1,30 x 1,00 x 0,60 m
- Serial No.: 4P11152J1
- Machine ON: 23,320 h
- Spindle ON: 5,042 h
- Control: HEIDENHAIN TNC 640
- TSC 40 bar incl. 600 liter coolant tank
with paper band filter unit
- Y-Axis with 4 liear guide rails!
Fedpfexx A Ewox Ah Eepb
- Chip conveyor
- X- and Z-Axis with 6 roller supports for
each axis!
