Sög fyrir skurð / samsetningarsög

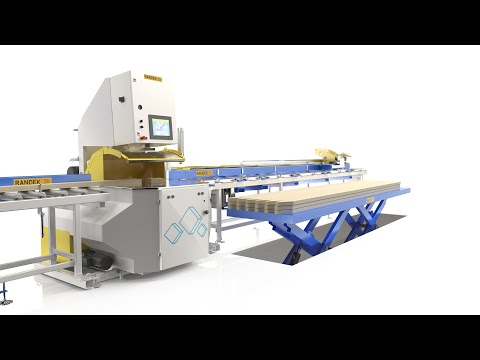

Randek AB SPL728 Cut Saw

Randek intersection saw SPL728
Computer controlled, revolving,
with LAN (Ethernet) connection for downloading or storing sawjobs (text file in ASCII format).

The number of programs that could be stored is limited only by the size of the hard disk.

Through the graphical touch screen (HMI), the operator is able to track all details directly on the screen or direct the saw directly to minimize disruptions in the production run.
Podpfjfg Tatox Ah Hopt

Sawblade:
Heart metal, low noise,
700 mm Ø / 116 teeth,
360 ° horizontal swivel,
90 ° -28º inclined,
250 mm entry depth

Engine performance 7.5 kW.

Automatic closed-lock plastic protective screen.

Supply bank, selectively 4.0 / 5.8 / 8.2 / 10.6 m long
Driving role, IRO4-120, driven.
Transport roll 76 mm Ø, roll length 400 mm, roll spacing C / C 500 mm.
Return value 120 mm.
Pressing device, pneumatic, 2 piece
Select direction from left or right.

Delivery bank, optionally 5.8 / 7.0 / 8.2 / 9.4 / 10.6 / 11.8 / 13 m long
Computer controlled rolling stock type LX.
Execution guide, rollers 76 mm Ø, length 400 mm.
Hinged hooks 120 mm.

2 computer-controlled longitudinal locks, driven by gear belts.
Hump ​​1 - designed for cutting lengths up to 50 mm.
Note 2 - runs over the entire length of the carrier bank.
The positioning of the longitudinal abutment and the setting of the cut angle
requires independent computer control.
Maximum speed of longitudinal contact 1 m / s.
Wooden furniture: 1 piece
Return devices: 2 pieces
Direction: select from left or right
