Steypukubbavél

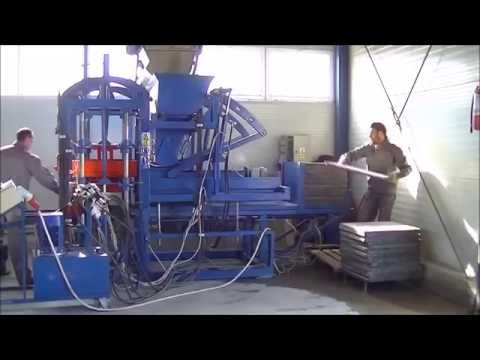

S.C. Arghir Prodex S.R.L. Speed 700

~ SPEED 700 , SEMI AUTOMATED ~

APPLICATIONS
Production of:

- paving

- kurbs

- concrete blocks for:
-masonry
-foundation blocks
-posts, floor slabs
-chimneys,
-gutters
-roadway gutter covers.

ADVANTEGES :

- Vigorous vibration coupled with hydraulic pressing of the concrete guarantees high quality concrete products.

- Vibrators mounted on the counter mold play an important role in concrete compaction.

- Chrome-plated pipe guide columns

- Teflon-coated sliding bearings

- Our wide range of molds can provide a diverse production.

- Reliable mechanical and hydraulic systems.


OPERATE :
~ Mostly manual:
-Drawer(back/ fort
-Mold (up/down)
Dujdehufyhepfx Ah Ejl
-Counter Mold (up/down)

~ Commands executed automatically:
-start/ stop vibration when reaching height
-start/ stop pallet feeding

exhaust line stop)
COMPONENTS:

1.) the press

2.) pallet stacking space

3.) pallet feeding line

4.) concrete bunker

5.) drawer (1) for concrete mold feeding

6.) pallet discharge line with fresh products

7.) hydraulic unit

8.) lever panel for the machine operator



TEHNICAL FEATURES:

- Pallet dimensions: 700x670x40mm

- Active surface: 640x640mm

- Minimum/maximum finished product height: 40mm/ 250mm

- Vibration frequency: 3000rpm

- Hydraulic pump flow: 40 l/min

- Cycle time: 60 -100 sec (Semi-automatic version)

- Cycle time: 30 – 50 sec (Fully automated version)

- Installed power: 15.50 kW

- Hydraulic power unit: 7.5 kW

- Vibrating table vibrators: 6.00 kW + 0.28 kW

- Counter mold vibrators: 0.80 kW

- Discharge line: 0.55 kW

- Supply voltage: 380V


OVERALL DIMENSIONS:
Width: 1.60m (without hydraulic unit and control panel)
Length: 5.60m
Height: 2.85m
Machine mass (without mold): 4,000 kg
Approx. mold mass: 250 - 300kg


ADDITIONAL PRODUCTS / OPTIONAL:

1.) AUTOMATIC OPERATION : ( + 6.300 euro )
- PLC (Mitsubishi Electric) logic programmer + touch display + software for automatic machine operation
Reduces the time of a production cycle, higher productivity (30 -50sec)


2.) SECOND DRAWER (2) for finishing layer for paver and kurbs
+ BUNKER ( + 3.900 euro )


3.) CONCRETE MINISTATION SEMIAUTOMATED ( + 18.800 euro)
Component parts:

a.) Sand bunker 2 m2 + Volumetric dosing with conveyor belt + Vibrator

b.) Gravel bunker 2 m2 + Volumetric dosing with conveyor belt

c.) Electric control panel

d.) Concrete Mixer MX 300 ( Fluid concrete: 300 liters
Semi-wet concrete: 200 liters, 2.4 cubic meters of semi-wet concrete/hour )


4.) AUTOMATIC LIFT (elevator) ( + 4.000 euro)

5.) CONVEYOR 6M , for transporting the concrete to the machine bunker ( + 4.000 euro)

- Band width: 500mm

- 7mm smooth rubber mat with 3 inserts

- Motor 1.5kW (380V)

PLEASE FOR THE COMPLETE OFFER SEND US AN EMAIL.
