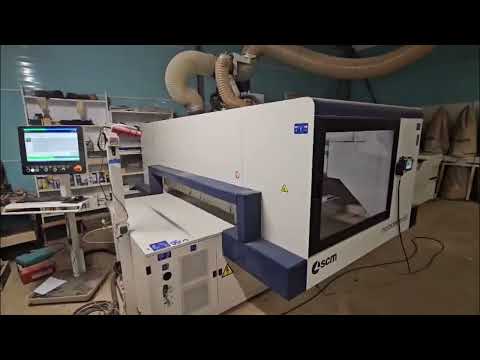

SCM Morbidelli M100 CNC vinnslumiðstöð (2019)

SCM Morbidelli M100

Work area and workpiece capacity
Travel range X-axis: 3110 mm
Travel range Y-axis: 1620 mm
Workpiece passage Y: 1,900 mm
Workpiece passage Z: 180 mm
Workpiece length in shuttle mode: 1,400 mm
Table design: TV FLEX 1600 / FLEXMATIC
Number of cross traverses: 6
Positions of traverses: 6 to 12 positions
Axis speeds and drive data
Maximum vector speed X/Y (PRO-SPACE): 56 m/min
Maximum vector speed X/Y (PRO-SPEED): 78 m/min
Speed of vertical drilling spindles: up to 8,000 RPM
Speed of horizontal drilling spindles: up to 8,000 RPM
Max. speed of main spindle: 24,000 RPM
Speed of grooving unit/circular saw: frequency-controlled, approx. 2,500-8,000 RPM
CNC control and software
Operating system: Windows 7
Display: 21.5" LCD Full-HD (16:9)
Operation: Keyboard, mouse and machine control panel
Software: Maestro CNC
Programming: Parametric programming, graphic programming, ISO code, DXF import
Machining functions: Milling, drilling, tool management, machining programs
Simulation: Graphic simulation of drilling and milling operations
TECPAD: 7" touchscreen for machine functions and error messages
Mobile operation: Portable control panel for operation along the machine
Drilling and grooving unit F23L
Vertical drilling spindles: 13 independent spindles (7 clockwise, 6 counterclockwise)
Horizontal drilling spindles: 10 independent spindles
Arrangement of horizontal spindles: 4 spindles in the X direction on one side, 3 spindles in the X direction on the opposite side, 2 spindles in the Y direction
Integrated sawing unit: Grooving and circular saw unit in the X direction
Godpfx Acozuwurs Dokc
Saw blade diameter: 125 mm
Motor power of sawing unit: 2.2 kW (approx. 3 hp)
Stroke of vertical drilling unit: 75 mm pneumatic stroke
Stroke of horizontal drilling unit: 75 mm pneumatic stroke
Frequency inverter: Programmable speed control up to 8,000 RPM
5-axis milling unit and tool changing system
Main unit: JQX 5-axis milling unit
Spindle type: Hiteco HSK-F63 electric spindle
Power: 10 kW rated power
Peak power (S6): approx. 9.5-15 kW
Maximum speed: 24,000 RPM
Bearings: Ceramic bearings
Cooling: Liquid-cooled spindle
Lubrication: Central automatic lubrication system
Rear tool magazine TRB 14
Magazine positions: 14
Travel range: 350 mm
Pitch: 115 mm
Max. tool diameter: 240 mm
Max. total tool weight: 70 kg
Front tool magazine FAST 14
Magazine positions: 14
Max. tool diameter: 130 mm
Max. tool weight per position: 8 kg
Max. total weight: 24 kg
Vacuum system, workpiece clamping and positioning
Vacuum cups: 12 pcs, permanently mounted
Dimensions of cups: 145 x 145 mm
Height of cups: 75 mm
Vacuum pump: Standard 1 vacuum pump
Additional vacuum pump: 90 m³/h
Workpiece supports: 4 pneumatic workpiece supports
Rear stops: 8 aluminum stops
Intermediate stops: 8 aluminum stops
Side stop: Left reference stop with laser positioning
Preparation for clamping cylinders: Prepared for 6 pneumatic clamping cylinders
Extraction and compressed air
Connection power: 23 + 28.5 kVA
Compressed air consumption: 450 l/min
Required extraction capacity: 4,500 m³/h
Air velocity in extraction: 25 m/s
Extraction nozzle: 250 mm
