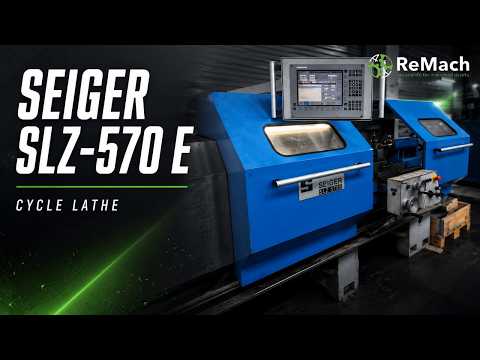

Seiger SLZ-570 E x 1500 Heidenhain Manual Plus hringrennibekkur

Seiger SLZ-570 E x 1500

Working range
Center distance: 1,500 mm
Travel over bed: 570 mm
Travel over cross slide: 340 mm
Cross slide travel: 290 mm
Bed width: 350 mm


Spindle
Spindle head DIN 55027 size 8
Spindle bore: 93 mm
Speed range: 1–3,000 rpm
Main drive: 20 kW AC motor
Tailstock
Quill diameter: 90 mm
Quill stroke: 180 mm
Mounting: MK 6


Feed
Feed force X: 7,000 N
Feed force Z: 10,000 N
Rapid traverse X: 7 m/min
Rapid traverse Z: 10 m/min


Machine
Weight: approx. 3.6–3.9 t
Dimensions: approx. 3,300 × 1,800 × 1,900 mm


Tjdpsy S Ni Sofx Ahrob
Equipment
Heidenhain Manual Plus cycle control
Heidenhain AC servo drives
ZF two-speed gearbox (electrically switched)
3-jaw wedge bar chuck Ø250 mm
Face plate Ø500 mm
Fixed steady rest
Tailstock with live center
Multifix tool holder
Parat 4-station turret
Reinforced coolant pump
Machine feet


Accessories
Multifix tool holder package
Various turning holders
Measuring equipment / setting tools
Steering ring
Face plate
Additional mountings and accessories
Documentation available
Typical dimensions (1,500 mm center distance version)
Space requirement / dimensions approx.:
Length: approx. 3,900 mm
Width: approx. 2,000 mm
Height: approx. 2,000 mm

Turning length max.: 1,500 mm
Turning diameter over bed: 570 mm
Weight approx.: 6,000 kg
Dimensions (LxWxH) approx.: 3300 x 1800 x 1900 mm
Turning diameter via support: 340 mm
Control: Heidenhain Manual Plus
Year of construction: 2,008
Condition: in working order
Terms of payment: 100% prepayment before pick-up
Terms of delivery: Free loading on truck
under power: Yes
