CNC rörskurðarvél

SENFENG SF6012G Plus 3KW 2.5D

SENFENG SF6012 PLUS – 3kW Fiber Tube Laser Cutting Machine

High productivity, efficient material handling and maximum material utilization

The SENFENG SF6012 PLUS is a high-performance fiber laser tube cutting machine designed for efficient series production of small to medium-sized tubes and profiles.

Equipped with a 3,000 W MAX Photonics fiber laser source, semi-automatic tube loading and the advanced T PLUS overtravel cutting concept, the machine combines high cutting performance with efficient material handling and minimal residual material.

Available for viewing, demonstrations and test cutting in our showroom from October 2026.

Why choose Besten Machines?

✔ Over 25 years of experience in metalworking
✔ Locations in the Netherlands and Germany
✔ Own Dutch and German service engineers
✔ Installation, commissioning and operator training
✔ Technical support and spare parts availability
✔ More than 70 SENFENG machines successfully installed

Machine Configuration
3,000 W MAX Photonics fiber laser source
BOCI autofocus 2.5D laser cutting head
FSCUT3000DE-A CNC control system
Cooling system for laser source and cutting head
Power stabilizer
Semi-automatic loading system up to 6.5 m
Loading capacity for up to 5 tube/profile positions
Unloading station with 2 m conveyor
Optional 3–4 m conveyor
TubesT 3D tube nesting software
Fully enclosed, CE compliant
Technical Specifications

Model: SF6012 PLUS
Laser power: 3,000 W
Laser wavelength: 1060–1080 nm
Tube length: 1,000–6,500 mm
Round tube: Ø15–Ø120 mm
Square tube: 15×15–120×120 mm
Maximum tube weight: 120 kg
Maximum acceleration: 1.5G
Maximum rapid speed: 150 m/min
Maximum chuck speed: 240 rpm
Positioning accuracy X/Y: ±0.4 mm
Repeatability X/Y: ±0.4 mm
Power supply: 3×380 V / 50 Hz
Protection class: IP54
Dimensions incl. loading system: approx. 9,100 × 2,230 × 2,300 mm
Machine weight: approx. 3,400 kg

Key Features

Nedpfx Aszwquqohyslf

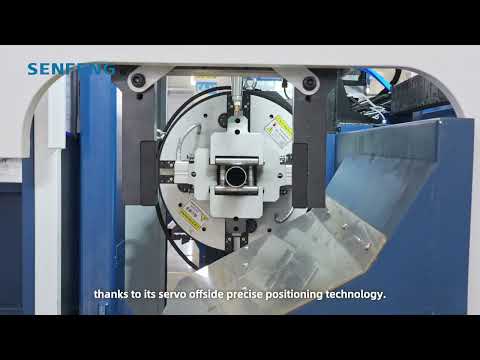

T PLUS Overtravel Cutting
The movable front chuck enables overtravel cutting, minimizing residual tube length and maximizing material utilization.

Semi-Automatic Loading
Loading system with up to five tube/profile positions for material lengths up to 6.5 m, reducing manual handling while maintaining production flexibility.

Servo-Controlled Tube Support
Active supports reduce sagging and vibration during processing, improving stability and cutting accuracy.

FSCUT & TubesT Software
Integrated CNC control combined with 3D nesting software for efficient programming, automatic nesting and material optimization.

Automatic Unloading
Finished parts are discharged via conveyor for controlled and efficient material handling.

Applications

Suitable for processing carbon steel, stainless steel and aluminium tubes and profiles. Ideal for machine construction, steel fabrication, furniture production, automotive components, agricultural machinery and general series production.

Showroom & Service

The SF6012 PLUS 3kW will be available in our showroom from October 2026 for demonstrations and test cutting.

Besten Machines provides installation, commissioning, training and after-sales service through our own service team in the Netherlands and Germany.

Contact us for a quotation or demonstration. Send us your drawings and material specifications and we can perform a test cut for your application.
