SICK S30B-3011BA öryggisleisar skanni, öryggisskanni, leysiskanni S300

Sick S30B-3011BA

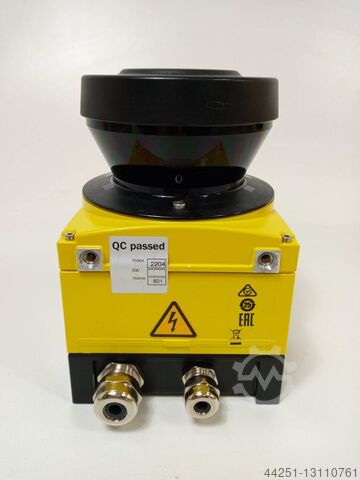

SICK S30B-3011BA Safety Laser Scanner
Features
Design: Sensor without system connector
Application area: Indoor
Protective field range: 3 m
Warning field range: 8 m (at 15% remission)
Distance measurement range: 30 m
Type of field set: Triple field sets
Number of field sets: 1
Number of fields: 3
Number of monitoring cases: 1
Scanning angle: 270°
Resolution (configurable): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
Angular resolution: 0.5°
Response time: 80 ms 1)
Protective field offset: 100 mm
Number of multiple evaluations: 2 ... 16, configurable
Delay of automatic reset: 2 s ... 60 s, configurable

Safety-related parameters
Type: Type 3 (IEC 61496)
Safety Integrity Level: SIL2 (IEC 61508)
Category: Category 3 (EN ISO 13849)
Performance Level: PL d (EN ISO 13849)
PFHD (mean probability of a hazardous failure per hour): 8.0 x 10-8
TM (service life): 20 years (EN ISO 13849)

Function
Restart lock: ✔
Protective device monitoring (EDM): ✔
Multiple evaluation: ✔
Contour as a reference: ✔
Integrated configuration memory: ✔
Dcodepudqxepfx Apaon
Measured data output: via RS-422
Secure SICK device communication via EFI: ✔

Connection type
Connection type: System connector with or without connection cable
Universal I/Os: 5 1)
Inputs:
Protective device monitoring (EDM): 1 2)
Reset/Restart: 1 2)
Stand-by: 1
Outputs:
OSSD pairs: 1
Status outputs: 3 3)
Type of configuration: PC with CDS (configuration and diagnostic software)
Configuration and diagnostic interface: RS-232
Transmission rate: 38.4 kBaud
Data interface: RS-422
Transmission rate: ≤ 500 kBaud
Secure SICK device communication via EFI:
Transmission rate: ≤ 500 kBaud
Cable length: ≤ 50 m
Conductor cross-section: 0.22 mm²
1) Freely programmable, e.g. protective device monitoring input, reset input, contamination warning, reset required.
2) Availability depends on the configuration of the universal I/Os.
3) Freely programmable, e.g. warning field, contamination, reset required.

Protection class: III (EN 50178)
EN 60950
Supply voltage Uv: 24 V DC (16.8 V DC ... 30 V DC)
Current consumption ≤ 0.33 A 1)
≤ 1.7 A 2)
Outputs:
Safety outputs (OSSDs): 2 x 250 mA
Status outputs: 3 x 100 mA 3)

1) At 24 V DC without output load.
2) At 24 V DC with maximum output load.
3) Freely programmable, e.g. warning field, contamination, reset required.

Item condition: new, from stock clearance (without original packaging)
Year of manufacture: 2017
