TRAUB TNK 36
TRAUB TNK 36

Name: TRAUB TNK 36
Brand: TRAUB
Availability: InStock

Framleiðsluár

2003

Ástand

Notað

Staðsetning

Þýskaland

Upplýsingar um vélina

Heiti vélar:: TRAUB TNK 36

Framleiðandi:: TRAUB

Gerð:: TNK 36

Framleiðsluár:: 2003

Ástand:: tilbúinn til notkunar (notaður)

Vinnustundir:: 124.706 h

Verð og staðsetning

Staðsetning:: , Þýskaland

Hringdu

Tæknilegar upplýsingar

Spindilhraði (hámark):: 6.300 snúningur/mín.

X-áss færi:: 370 mm

Förfaravegalengd Z-áss:: 250 mm

Spindilsmótorsafl:: 10.700 W

Stjórnbúnaðarframleiðandi:: TRAUB

Stýrislíkarlíkan:: TX8i (64-bit)

Fjöldi ása:: 6

Tilboðsupplýsingar

Auglýsingarauðkenni:: A22051923

Tilvísunarnúmer:: DE-TUR-TRA-2003-00001

Uppfærsla:: síðast þann 03.06.2026

Lýsing

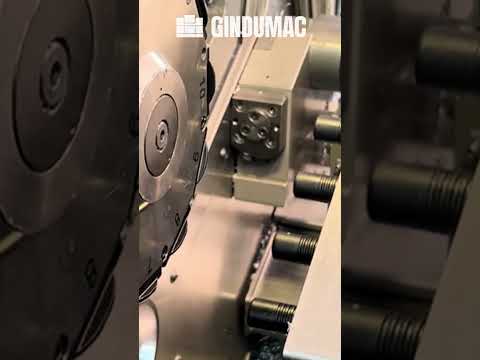

This 6-axis TRAUB TNK 36 was manufactured in 2003. It features a maximum spindle speed of 6,300 rpm and a main spindle bore of 36 mm. The machine is equipped with advanced capabilities such as tool monitoring, rigid tapping, and a high-pressure coolant system. If you are looking to get high-quality turning capabilities, consider the TRAUB TNK 36 horizontal turning machine we have for sale. Contact us for further details.

TECHNICAL DATA

• MDE Interface: Yes
• Tool Monitoring: Yes
• Rigid Tapping: Yes (without compensation chuck)
• Main Spindle Bore: 36 mm
• Main Spindle Drive Power: AC 6.7 / 10.7 kW
• Top Turret Stroke X/Z: 50 / 100 mm
• Rear Attachment Stroke X: 73 mm
• Rear Attachment Stroke Y: ±50 mm
• Main Spindle C-Axis: Yes
• Hainbuch Change Parts: Yes
• Hainbuch Setup Aid Base Body: Yes
• Hainbuch Manual Change Device: Yes
• Counter Spindle: Motor Spindle
• Counter Spindle C-Axis: Yes
• Counter Clamping Pressure Device: Yes
• Workpiece Ejection Device: Yes
• Hainbuch Axfix Chuck: Yes
• Upper Tool Carrier: Yes
• Electronic Gearbox: Yes
• X3 Cross Axis for Front Unit: Yes
• Front Unit: 5-position
• Driven Tools on Front Unit: Yes
• Cut-Off Side Machining Station: Yes
• Driven Tools on Cut-Off Side Station: Yes
• Workpiece Unloading Device: Gripper
• Coolant Tank Capacity: 230 l
• Coolant Pressure: 7 bar
• Coolant Flow Rate: 50 l/min
• Internal Coolant Supply: 30 bar
• High Pressure Coolant: 120 bar (front and rear machining station)
• Coolant Filter: Knoll VRF 150/750 Vacuum Rotary Filter
• Suitable Materials for Filter: Aluminum, Plastic, Brass, Steel
• Wash Gun: Yes
• Connected Load: 22 kW
• Maximum Bar Length: 3 m
• Maximum Bar Diameter: 36 mm
• Operating Voltage: 400 V, 3~, 50 Hz
• Control Voltage: 24 V AC
• Valve Voltage: 24 V DC
• Clutch Voltage: 24 V DC
• Total Installed Power: 33 kW
• Total Rated Current: 60 A
ADDITIONAL EQUIPMENT OPTIONAL

Klodpfx Agsza Ucxe Iew
• FMB turbo 5-42 XT / 3200"C" Bar Feeder
• Bar Feeder Year: 2003
• Hinged Belt Chip Conveyor
• Chip Conveyor Discharge Height: 950 mm
• Guide Tubes D25, D36
• Running Workpiece Stop, Shank 16 × 16 mm
• Brankamp CMS 100 Collision Monitoring

Technical Specification
Through-spindle Coolant Yes
Counter Spindle Yes
Driven Tools Yes
