Hitaprófunarskápa 190 lítrar

Vötsch VT 7018 -70°C bis +180°C

Vötsch
Model: VT 7018

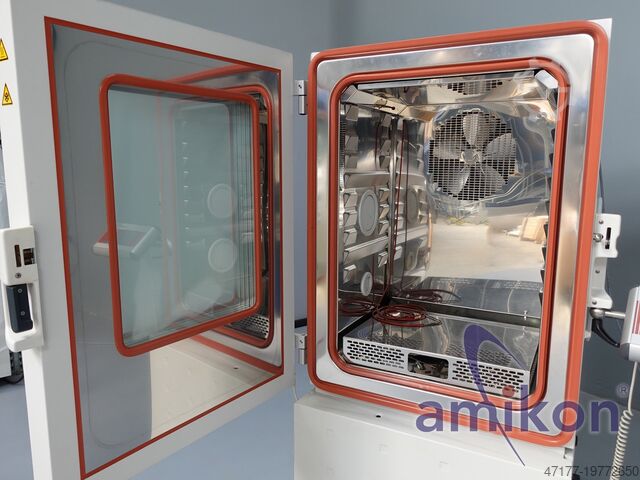

Air-cooled temperature test chamber
Only approx. 630 operating hours (read out)!
Test chamber dimensions: Width 580 x Depth 450 x Height 750 mm
External dimensions: Width 865 x Depth 1280 x Height 1780 mm
Test chamber volume: approx. 190 liters
Technical specifications for temperature tests:
Temperature range: -70 °C to +180 °C
Temperature deviation in steady state, according to IEC 60068-3-5
depending on the test chamber temperature
temporal ±0.1 to ±0.5 K
spatial ±0.5 to ±2.0 K
Temperature change rate according to IEC 60068-3-5
Heating: 4 K/min.
Cooling: 2.3 K/min.
Thermal compensation max. 1000 W
Tube port L1: DN 50 mm
Tube port L2: DN 125 mm
Tube port R1 R2: DN 125 mm
Electrical connection:
Rated voltage: 3/N/PE AC 400V ±10% 50Hz
Rated power: 5.9 kW
Rated current: 12 A
Protection: 16 A time-lag, to be provided by customer
Weight: approx. 460 kg net
Refrigerants: R 404A and R 23
Important safety information for you as a buyer!
The following points are carried out in advance on our offered chambers:
1. Functional check and replacement of necessary components
2. If required, refilling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers undergo a documented trial run.
Codpfxew Nqims Agworh
Condition: used
Scope of delivery: (See image)
(Subject to change and errors in technical data!)
We are happy to answer further questions by phone.
