Losunarprófunarhólf

WEISS WT 5,1'/ + 18-45

Weiss

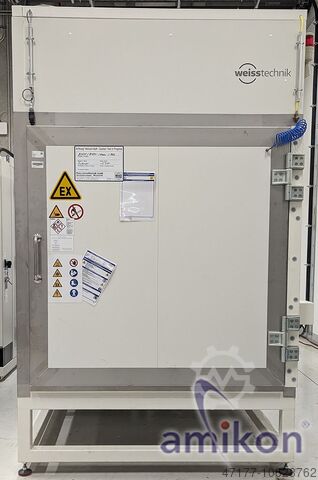

Here we offer a Weiss emission test chamber.

Mini - SHED for Diurnal Loss Measurements
Test chamber dimensions: Width 1600 mm x Depth 2140 mm x Height 2150 (Usable 1600) mm.

Housing dimensions: Width 1760 mm x depth 3100 mm x heights 2790 mm

Max. floor load 250 kg

Operating range +18 °C ...+45 °C, (at higher temperatures SHED operation is only possible without Tedlar bag)

Temperature range +18 °C ...+45 °C

Temperature constancy ≤ ±1 K (temporal)

Temperature change rate, (heating and cooling) approx. 0.5 K/min., without test material
Cedpfx Asmfny Isa Usrh

Duct connection (air inlet and outlet) ∅ 80 mm, in chamber rear wall

Shut-off valve, gas-tight (air inlet and outlet) ∅ 80 mm, gas-tight, pneumatic operation Delivery limit: connection flange of shut-off valve

Cooling water consumption approx. 0.8 m3/h
Voltage: 230/400 V; 3 PH + N + PE; 50 Hz
Rated power: 4,1 kW Rated current: 14,0A
Weight: approx. 2500 kg
type: WT 5,1'/ + 18-45
Condition: used / used

Sale ex location
Scope of supply: (Only the Weiss emission test chamber WT 5,1'/ + 18-45 Mini-SHED)
(Changes and errors in the technical data, specifications are reserved!)
Further questions we can answer on the phone for you.
