DECKEL MAHO DMU 35 M - SIEMENS 810D mit ShopMill

CNC 3+2 axis vertical machining center DECKEL MAHO type DMU 35 M
CNC control SIEMENS 810D with ShopMill
Manufacturer no. 11065353554 Year of manufacture 2001
Lhjdpfx Adjvt D D Ue Dsc
Travel paths: X: 350 mm, Y: 240 mm, Z: 340 mm
Table movements: C-axis: 360°
Swivel range: +105° / -15°
Universal swivel - rotary table: 400 x 290 mm, center hole 30H6
Table load: max. 100 kg
Distance spindle nose - table: min. 145 mm to max. 485 mm
Feed rate: 5,000 mm/min
Rapid traverse (X / Y / Z): 5 m/min
Input resolution: 0.01 mm
Total power requirement: 15 kVA
Speed range - main spindle: 20 - 6,300 min/-1
Drive power - main spindle: 6.3 / 10 kW (100% / 40% ED)
Torque: max. 55 / 80 Nm
Tool holder: SK 40 DIN 69871
Pull bolt: DIN 69872 or ISO 7388/2 Type B
Interface: Serial RS232C, LAN (RJ45)
Power connection: 400 volts, 50 Hz, 15 kVA
Compressed air connection: 6 bar

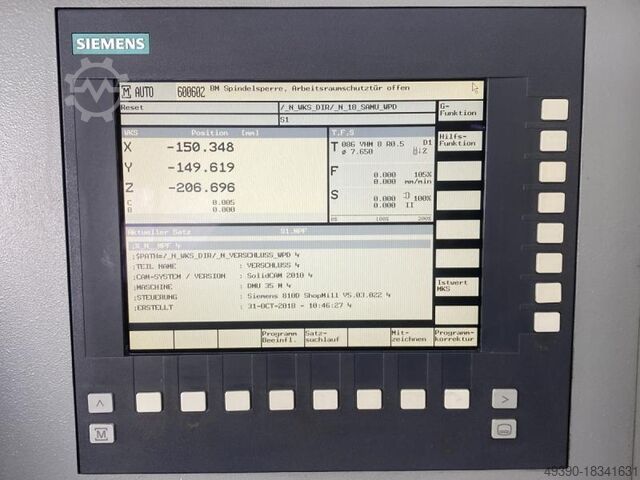

- CNC control Siemens Sinumerik 810D with ShopMill V05.03.22, NCU 03.03.34-CCU1E, MMC103
- 3-axis controlled (X, Y and Z axis)
- Manual swivel rotary table, C axis = table rotation 360°, B-axis = swivel range +105°/ -15°
- direct path measuring system for all 5 axes
- electronic handwheel
- spindle drive via servo motor with toothed belt and 2 gear stages
- fully protected cabin with sliding door
- swiveling control panel
- coolant nozzles on the vertical head
- chip tray with coolant container and cooling lubricant pump
- work area lighting
- documentation available
space requirement L x W x H 2000 x 2000 x 2100 mm
weight 1750 kg
good condition
