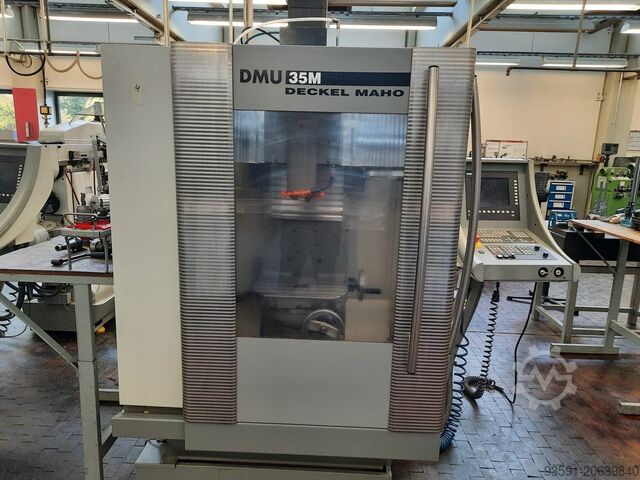

Alhliða vinnslustöð

Deckel Maho DMU 35 M

Please read the technical specifications carefully. If the machine is of interest to you as an investment, we kindly ask that you provide full identification, including a correct phone number and email address, when requesting an offer.

DECKEL Milling Machine Toolroom Milling Machine DMU 35 M

3 x 2 axes CNC Milling Machine

With SIEMENS 810 D – ShopMill software

Year of manufacture: 2001 and 2003 (2 units available)

Travel distances (X/Y/Z): 350 x 240 x 340 mm

Spindle speed, stepless: 20 – 6,300 rpm

Spindle taper: SK 40 DIN 69871

Clamping bolt: DIN 69872

Drive power: 6.3 / 10 kW (100/40% duty cycle)

Torque: 55 / 80 Nm max.

Universal swivel/rotary table: 400 x 290 mm

Table load: 100 kg

Distance spindle nose/table: min./max. 145 / 485 mm

Feed rates: 3,000 mm/min

Rapid traverse: 5,000 mm/min

Input resolution: 0.01 mm

Rotary axis range: 360 degrees

Swivel range: degrees
Lhsdpfx Amjxz Rdao Hsf

Total power consumption: kVA

Weight: approx. 1,750 kg

Technical data subject to change!

Accessories/Equipment:

- Direct measuring system for 3 axes
- Spindle drive via servomotor with toothed belt
- 2 gearbox stages
- Fully enclosed guard cabin with sliding door
- Swiveling control panel
- Coolant nozzles at the vertical head
- Coolant system
- Chip tray with coolant tank
- Electronic handwheel
- Machine feet
- Machine light
- Serial RS232C interface, LAN (RJ45)

The machine is perfectly suited for prototyping, toolmaking, training, mechanical workshops, gunsmiths, etc.

Its outstanding universal capability is thanks to the additional manually operated rotary/swivel table, which allows 5-sided machining.

Condition: Good to very good, from a vocational training center, see photos. Can be inspected under power.
